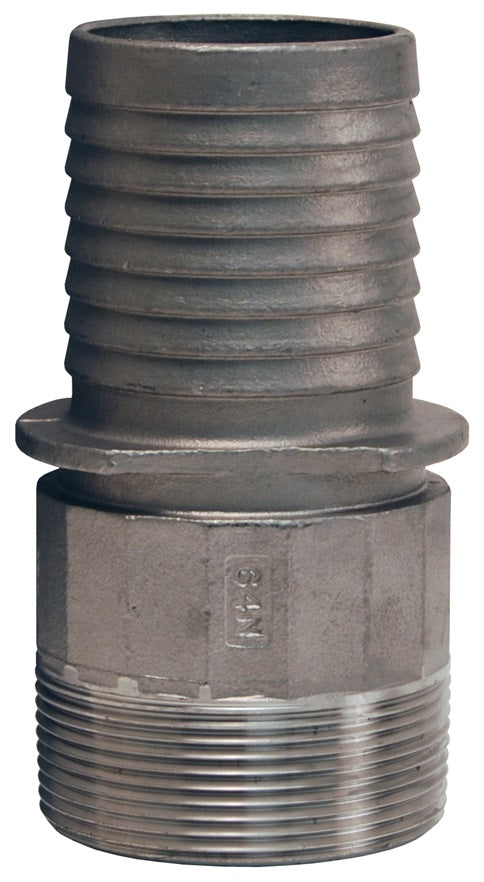

RST150NOS by Dixon Valve | King Combination Nipple External Swage Notched NOS Stem | 1-1/2" Male NPT x 1-1/2" Hose ID | 250 PSI | 316 Stainless Steel

RST150NOS by Dixon Valve | King Combination Nipple External Swage Notched NOS Stem | 1-1/2" Male NPT x 1-1/2" Hose ID | 250 PSI | 316 Stainless Steel

Sale price$54.39
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Use:
  • For hose outside diameters of 2-4/64" and below, the couplings are crimp only.
  • For hose diameters of 2-5/64" and above, the couplings can be crimped or swaged.
Safety Notes:
  • Only use the NOS shank with the NOS ferrules.
  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • You must purchase a fitting and the matching ferrule to create an assembly.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that particular hose end OD. Dixon's Die and Ferrule Recommendation Guide is to be used to select correct dies and ferrules.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
316 Stainless Steel
Part Number		 Size Working PSI
RST150NOS 1-1/2" 250 PSI
RST200NOS 2" 250 PSI
RST300NOS 3" 250 PSI
RST400NOS 4" -

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/2in Male NPT
  • 1-1/2in Hose Barb
Material(s):
  • 316 Stainless Steel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
