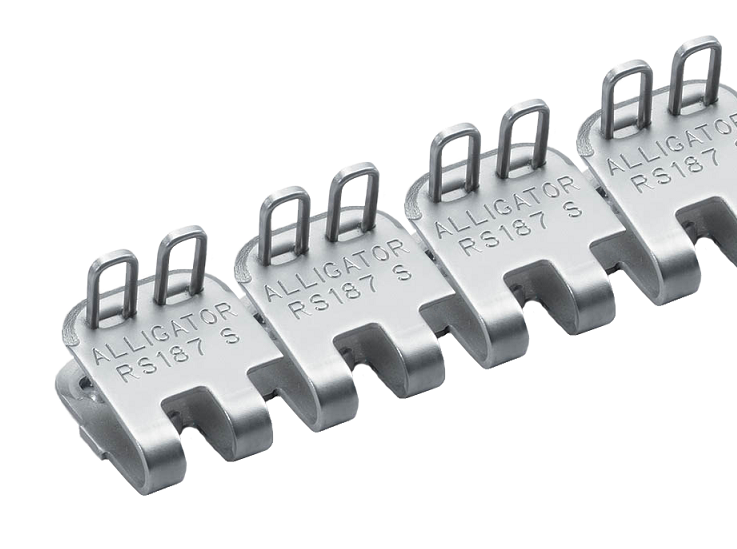

RS187SJ60NCS Flexco Alligator Ready Set Staple - 54715 - 60" Belt Width (316 Stainless Steel with Nylon Covered Stainless Cable Pins)

RS187SJ60NCS by Flexco | #54715 | Alligator Ready Set Staple | 60" Belt Width | Nylon Covered Stainless Cable Pins | 316 Stainless Steel

Sale price$1,469.08
Flexco Alligator® Ready Set Staple System
FREE SHIPPING DOMESTICALLY!
Buy More, Save More!
Quantity Price Each
4–7 $1,380.94
8–14 $1,322.17
15+ $1,175.26
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Stainless Steel
Applicable Belt Thickness:
  • 3/16 to 1/4in
Applicable Belt Width:

60in

Designed for light and medium-duty synthetic carcass belting, the Alligator® Staple fastener utilizes high tensile, stainless steel staple attachment, in conjunction with an extended plate design. This design separates the point of fastener penetration from the line of belt flexing to eliminate splice fatigue at the point of belt attachment.

Staple fasteners are furnished in strips with a bridge between each fastener plate. This strip design minimizes the chance of individual parts dislodging into the conveyed product. The one-piece design provides a stronger splice, greater resistance to impact damage, and a smoother, unrippled joint that simplifies hinge pin insertion.

Staples are hammer driven through the fastener and belt, working between the carcass fibers without severing them. The staples are then clinched cross-wise to the belt, so that belt tension does not pull against the staples to unclinch them.
Each Set Contains:
  • 4 Fastener Sets
  • 4 Hinge Pins
  • Required Amount of Retaining Washers
Applications:
  • Package and Parts Conveying, Food and Sanitary Contact, Agricultural Harvesting and Handling, Recycling and Scrap Handling, Wood Products
Features:
  • Features a one-piece fastener strip with pre-inserted staples, reducing installation time by eliminating the need to handle and load individual staples.
Installation:
  • Alligator Ready Set installation is easy with a portable, lightweight application tool that can be carried to the job for on-site installation. Simply fit the fastener strip onto the belt end and secure with the special installation tool, then drive and finish set the staples for a strong, long-lasting splice.
  • RSC187 Alligator Installation Tool (2")
  • RSC187-4 Alligator Installation Tool (4")
  • RSC187-6 Alligator Installation Tool (6")
  • RSC187-12 Alligator Installation Tool (12")
  • RSC187-24 Alligator Installation Tool (24")
Other Available Components:
  • Alligator Ready Set Tool Kits are also available.
    • RSTK4-6 (6"/150 mm) Alligator Ready Set Tool Kit
    • RSTK4-12 (12"/300 mm) Alligator Ready Set Tool Kit
Literature:


Fastener Size Belt Thickness
Range		 Minimum Pulley
Diameter
RS62 1/16" - 1/8" 2"
RS125 1/8" - 3/16" 3"
RS187 3/16 - 1/4" 4"


Belt Width Steel with Nylon Covered
Steel Pin
(NC)		 Steel with Steel
Spring Wire
Cable Pins
(SP)		 SS with Stainless Spring
Wire Pin
(SS)		 SS with Nylon
Covered Stainless Cable Pin
(NCS)		 Magnetic
430 Stainless Steel
with Magnetic
Stainless Steel
Cable Pins
(MS)
RS125
4" RS125J4NC - - - -
10" RS125J10NC - - RS125SJ10NCS -
12" RS125J12/300NC - RS125SJ12/300SS RS125SJ12/300NCS -
14" RS125J14NC - RS125SJ14SS RS125SJ14NCS -
16" RS125J16/400NC RS125J16/400SP RS125SJ16/400SS RS125SJ16/400NCS -
18" RS125J18/450NC RS125J18/450SP RS125SJ18/450SS RS125SJ18/450NCS -
20" RS125J20/500NC RS125J20/500SP RS125SJ20/500SS RS125SJ20/500NCS -
24" RS125J24/600NC RS125J24/600SP RS125SJ24/600SS RS125SJ24/600NCS RS125MJ24/600MS
30" RS125J30/750NC RS125J30/750SP RS125SJ30/750SS RS125SJ30/750NCS -
36" RS125J36/900NC RS125J36/900SP RS125SJ36/900SS RS125SJ36/900NCS -
42" RS125J42NC RS125J42SP RS125SJ42SS RS125SJ42NCS -
48" RS125J48NC RS125J48SP RS125SJ48SS RS125SJ48NCS -
60" RS125J60NC RS125J60SP RS125SJ60SS RS125SJ60NCS -
72" RS125J72NC RS125J72SP RS125SJ72SS RS125SJ72NCS -
RS187
4" RS187J4NC - - - -
12" RS187J12/300NC - RS187SJ12/300SS RS187SJ12/300NCS -
16" RS187J16/400NC - RS187SJ16/400SS RS187SJ16/400NCS -
18" RS187J18/450NC RS187J18/450SP RS187SJ18/450SS RS187SJ18/450NCS -
20" RS187J20/500NC RS187J20/500SP RS187SJ20/500SS RS187SJ20/500NCS -
24" RS187J24/600NC RS187J24/600SP RS187SJ24/600SS RS187SJ24/600NCS -
30" RS187J30/750NC RS187J30/750SP RS187SJ30/750SS RS187SJ30/750NCS -
36" RS187J36/900NC RS187J36/900SP RS187SJ36/900SS RS187SJ36/900NCS -
42" RS187J42NC RS187J42SP RS187SJ42SS RS187SJ42NCS -
48" RS187J48NC RS187J48SP RS187SJ48SS RS187SJ48NCS -
60" RS187J60NC RS187J60SP RS187SJ60SS RS187SJ60NCS -
72" RS187J72NC RS187J72SP RS187SJ72SS RS187SJ72NCS -
RS62
12" RS62J12/300NC RS62J12/300SP RS62SJ12/300SS RS62SJ12/300NCS -
16" RS62J16/400NC - - - -
18" RS62J18/450NC RS62J18/450SP RS62SJ18/450SS RS62SJ18/450NCS -
20" RS62J20/500NC RS62J20/500SP RS62SJ20/500SS - -
24" RS62J24/600NC RS62J24/600SP RS62SJ24/600SS RS62SJ24/600NCS RS62MJ24/600MS
30" RS62J30/750NC RS62J30/750SP RS62SJ30/750SS RS62SJ30/750NCS -
36" RS62J36/900NC RS62J36/900SP RS62SJ36/900SS RS62SJ36/900NCS -
42" RS62J42NC RS62J42SP RS62SJ42SS - -
48" RS62J48NC RS62J48SP RS62SJ48SS RS62SJ48NCS -
60" RS62J60NC RS62J60SP RS62SJ60SS RS62SJ60NCS -
72" - RS62J72SP - RS62SJ72NCS -
