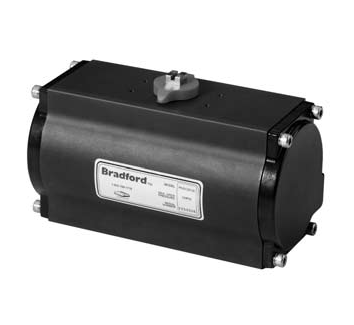

RP-BA-025-DA05 Dixon Valve RP-BA Series Double-Acting Aluminum Rack and Pinion Actuator - 250 Series - ISO5211 F05
Dixon

RP-BA-025-DA05 Dixon Valve RP-BA Series Double-Acting Aluminum Rack and Pinion Actuator - 250 Series - ISO5211 F05

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features and Benefits:
  • Body: extruded hard anodized aluminum alloy provides wear and corrosion resistance and reduced friction.
  • Heavy duty springs: high tensile steel springs with retainer and guide for safe and easy assembly.
  • Pistons: die-cast aluminum alloy fitted with nylon bushing guides and Buna-N seals.
  • End caps: epoxy-coated die-cast aluminum alloy for maximum resistance to corrosive environments.
  • Pinion: Electroless nickel plated carbon steel for maximum corrosion and wear resistance.
  • Rotation adjustment: A full ±5° of travel adjustment in the open and closed positions, standard on all sizes.
  • Solenoid interface: International NAMUR solenoid mounting interface is standard on all units.
  • Indicator: A high visibility polyethylene indicator. Open/Close indication is standard on all models.
  • Tested to 1 million cycles
Specifications:
  • Twin rack & pinion design
  • Female double square output shaft
  • ISO 5211 bolt patterns
  • Piston and pinion lubrication: Shell Darina R2
  • Range of rotation adjustment: 80° to 100°
  • Operating media: dry or lubricated non-corrosive gas
  • Operating pressure: 40 to 120 PSI
  • Maximum pressure rating: 150 PSI
  • Temperature range: -4°F to 200°F
  • Size range: 40 in. lb. 16,500 in. lb.
Cycle Times:
  • Overall cycle time performance will vary greatly for each unit. Cycle times are dependant on air supply, valve torque, line pressure, temperature and media.
Dimensions:
Part Number Weight Volume ISO5211
Outboard Inboard
cm3 in3 cm3 in3
RP-BA-012-DA 2.24 lbs. 77 4.70 80 4.88 F04
RP-BA-025-DA 2.36 lbs. 139 8.48 170 10.37 F04
RP-BA-025-DA05 2.36 lbs. 139 8.48 170 10.37 F05
RP-BA-045-DA 5.00 lbs. 252 15.38 324 19.77 F05 / F07
RP-BA-101-DA 8.70 lbs. 495 30.21 708 43.2 F05 / F07
RP-BA-225-DA 17.25 lbs. 1163 70.97 1573 59.99 F07 / F10
RP-BA-365-DA 14.80 lbs. 2415 147.37 2673 163.12 F10 / F12
