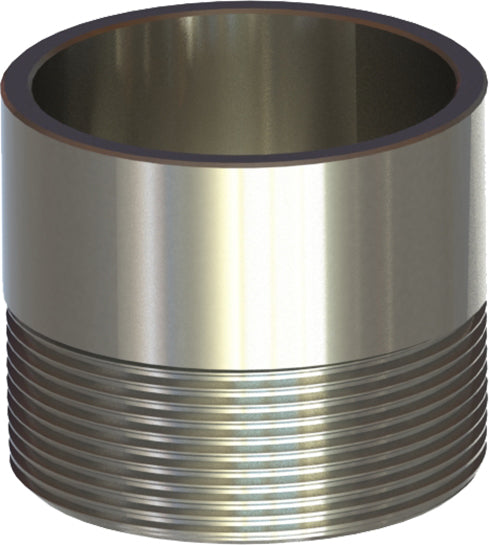

RNS-4 by Campbell Fittings | Toe Nipple | 1" Male NPT Thread x 2" Length | 304 Stainless Steel

RNS-4 by Campbell Fittings | Toe Nipple | 1" Male NPT Thread x 2" Length | 304 Stainless Steel

Sale price$18.54

by Campbell
Toe Nipples and Reducing Nipples:RNS Toe Nipple
Buy More, Save More!
Quantity Price Each
10–39 $17.43
40–79 $15.76
80+ $13.91
Discounts applied in cart/checkout.

Product Data:

Series:
  • RNS Series
Shape:

Straight

Ends Configuration:
  • 1in Male NPT
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number NPT x Length Size
RNS-2S 1/2" x 1-1/2" 1/2" x 1-1/2"
RNS-2 1/2" x 2" 1/2" x 2"
RNS-3S 3/4" x 1-1/2" 3/4" x 1-1/2"
RNS-3 3/4" x 2" 3/4" x 2"
RNS-4 1" x 2" 1" x 2"
RNS-5 1-1/4" x 2" 1-1/4" x 2"
RNS-5L 1-1/4" x 2-1/2" 1-1/4" x 2-1/2"
RNS-6 1-1/2" x 2" 1-1/2" x 2"
RNS-6L 1-1/2" x 2-1/2" 1-1/2" x 2-1/2"
RNS-6XL 1-1/2" x 3" 1-1/2" x 3"
RNS-8 2" x 2" 2" x 2"
RNS-8L 2" x 2-1/2" 2" x 2-1/2"
RNS-8XL 2" x 3" 2" x 3"
RNS-10S 2-1/2" x 2-1/2" 2-1/2" x 2-1/2"
RNS-12 3" x 3" 3" x 3"
RNS-12L 3" x 3-1/2" 3" x 3-1/2"
RNS-12XL 3" x 4" 3" x 4"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
