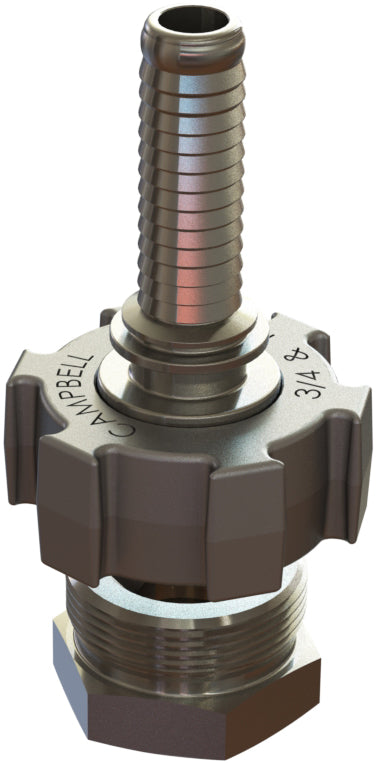

RHJF-3 by Campbell Fittings | Female Set w/ low profile nut | 3/4" Female NPT Thread x 3/4" Hose Barb | Straight | Steel/Ductile Iron

RHJF-3 by Campbell Fittings | Female Set w/ low profile nut | 3/4" Female NPT Thread x 3/4" Hose Barb | Straight | Steel/Ductile Iron

Sale price$72.45

by Campbell
Heavy Duty VITON® Seal Air Hammer Couplings:VITON® Seal Female Set (with low profile nut)
Buy More, Save More!
Quantity Price Each
10–39 $68.10
40–79 $61.58
80+ $54.34
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Female NPT
  • 3/4in Hose Barb
Material(s):
  • Ductile Iron
  • Steel
Recommended Use:
  • High-pressure steam and air
Recommended Hose Attachments:
  • Interlocking Ferrules
  • Interlocking U-bolt clamps
Features and Benefits:
  • Eliminates leaks with nut hand tightened.
  • Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life.
  • Spud does not contain plastic seat, extending working life.
  • Interchangeable with old-style domestic ground joint couplings.
  • Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
  • Interlock groove locks ferrule into place for superior holding power.
  • Crimped assemblies are low profile and eliminate sharp edges from bolts.
Part Number Size
RHJF-3 3/4"
RHJF-4 1"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
