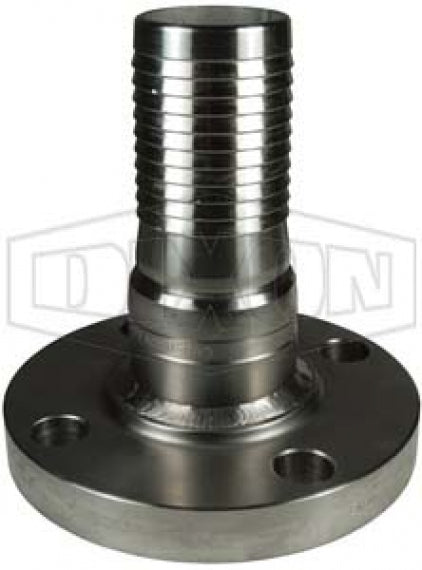

RFST25CS by Dixon Valve | King Crimp® | 150# ASA Fixed (Welded) Flange | 150# ASA Flange x 2" Hose Shank | 316 Stainless Steel

RFST25CS by Dixon Valve | King Crimp® | 150# ASA Fixed (Welded) Flange | 150# ASA Flange x 2" Hose Shank | 316 Stainless Steel

Sale price$323.42

Dixon Valve & Coupling
King Crimp® Style | 150# ASA Fixed (Welded) Flange

In stock
Buy More, Save More!
Quantity Price Each
5–14 $304.01
15–29 $274.91
30+ $242.57
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 2in 150# Flange
  • 2in Hose Barb
Material(s):
  • 316 Stainless Steel
About:
  • There are two grooves on the crimp style King combination nipples. The second groove is the roll stamp groove, which has the part number and "call Dixon" stamped on it. This groove is a smooth concentric groove so that the stamp is legible.
Safety Notes:
  • For use with King Crimp style sleeves and ferrules.
  • Only use the crimp style shanks with the crimp style sleeves and ferrules.
  • Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.
Steel
Part Number		 316 Stainless Steel
Part Number		 Size
FST20CS RFST20CS 1-1/2"
FST25CS RFST25CS 2"
FST35CS RFST35CS 3"
FST40CS RFST40CS 4"
FST60CS RFST60CS 6"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
