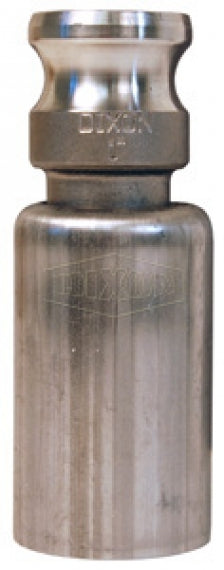

RE075-1370 by Dixon Valve | Boss-Lock Cam & Groove Coupler with Swaged Ferrule | Type E | 3/4" Size | Hose OD Range: from 1-6/64" to 1-22/64" | 316 Stainless Steel

RE075-1370 by Dixon Valve | Boss-Lock Cam & Groove Coupler with Swaged Ferrule | Type E | 3/4" Size | Hose OD Range: from 1-6/64" to 1-22/64" | 316 Stainless Steel

Sale price$77.10

Dixon Valve
Boss-Lock Cam & Groove Fitting | Type E | Adapter x Shank with Swaged Ferrule

Developed specifically for chemical transport hoses having Cross-linked Polyethylene (XLPE) or Ultra High Molecular Weight Polyethylene (UHMW) tubes.
Buy More, Save More!
Quantity Price Each
5–19 $72.47
20–59 $65.54
60+ $57.83
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Boss-Lock
MAWP:

250

Shape:

Straight
Features:
  • Provides a permanently attached cam and groove fitting when superior coupling retention is required.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!.
  • Dixon stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturer's stems or ferrules with Dixon products.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard Nitrile Rubber Seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Contact Dixon for swage recommendations.
  • Special equipment is required for installation
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
316 Stainless Steel
Part Number		 Size Hose OD Range Max. Operating
Pressure
from to
RE075-1370 3/4" 1-6/64" 1-22/64" 250 PSI
RE100-1620 1" 1-29/64" 1-35/64" 250 PSI
RE100-1770 1" 1-36/64" 1-44/64" 250 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
