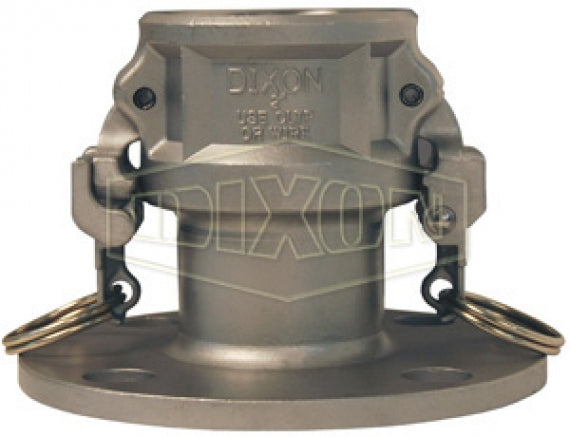

RDL400EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Flange Adapter | 4" Coupler x 150# Flange | 7/16" Flange Thickness | 316 Stainless Steel

RDL400EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Flange Adapter | 4" Coupler x 150# Flange | 7/16" Flange Thickness | 316 Stainless Steel

Sale price$618.60

Dixon Valve
EZ Boss-Lock Cam & Groove Flange Adapter | Coupler x 150# Flange

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
5–14 $581.48
15–29 $525.81
30+ $463.95
Discounts applied in cart/checkout.

Product Data:

Brand:
  • EZ Boss-Lock
MAWP:

100

Shape:

Straight
Features:
  • Flange has raised face.
  • Flanges are designed to mate with #150 flange.
  • Nitrile rubber gasket standard.
  • No more fumbling with clamps, wire, clips or pins, just close the handles and the locking mechanism is engaged. No sliding pins to jam or pop open.
  • Extremely easy to open, the release lever is under your thumb when you want to open the fitting, ergonomic.
  • Resistant to accidental disconnection when being dragged. The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm.
  • Rotating action helps keep the locking devise free of debris.
  • Designed to protect critical parts from impact and to withstand rugged use.
Safety Notes:
  • If the rotating lever is not flush with the handle, it is not properly engaged.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
316 Stainless Steel
Part Number		 Size Flange Thickness Max. Operating Pressure
RDL100EZ* 1" 9/16" 250 PSI
RDL150EZ* 1-1/2" 11/16" 250 PSI
RDL200EZ* 2" 7/16" 250 PSI
RDL300EZ* 3" 7/16" 125 PSI
RDL400EZ* 4" 7/16" 100 PSI
RDL600EZ* 6" 1" 75 PSI

* Part is produced as a welded fabrication

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
