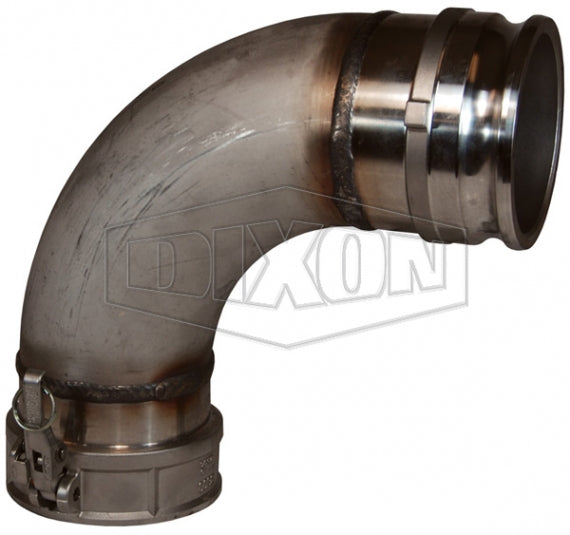

RDA90600EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | 90° Elbow | Type DA | 6" Adapter x 6" Coupler | 316 Stainless Steel

RDA90600EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | 90° Elbow | Type DA | 6" Adapter x 6" Coupler | 316 Stainless Steel

Sale price$1,971.64

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type DA | Adapter x Coupler

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
4–7 $1,853.34
8–14 $1,774.48
15+ $1,577.31
Discounts applied in cart/checkout.

Product Data:

Brand:
  • EZ Boss-Lock
MAWP:

75

Shape:

90 Degree
Construction:
  • Seal: Nitrile Rubber
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Maximum Operating Pressure
- 100DA-90SS* 1" 250 PSI
150DA-90AL* 150DA-90SS* 1-1/2" 250 PSI
200DA-90AL 200DA-90SS 2" 250 PSI
300DA-90AL 300DA-90SS 3" 125 PSI
400DA-90AL 400DA-90SS 4" 100 PSI
500DA-90AL* - 5" 75 PSI
600DA-90AL RDA90600EZ*
(EZ Boss-Lock)		 6" 75 PSI

* Parts are produced as a welded fabrication.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
