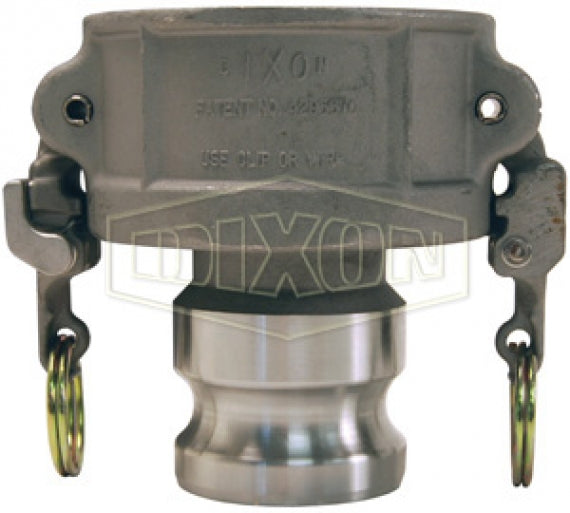

RDA2010EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Reducer (Jump Size) | Type DA | 2" Coupler x 1" Adapter | 316 Stainless Steel

RDA2010EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Reducer (Jump Size) | Type DA | 2" Coupler x 1" Adapter | 316 Stainless Steel

Sale price$295.88

Dixon Valve
EZ Boss-Lock Cam & Groove Jump Size Coupling | Type DA | Coupler x Adapter

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
5–14 $278.13
15–29 $251.50
30+ $221.91
Discounts applied in cart/checkout.

Product Data:

Brand:
  • EZ Boss-Lock
MAWP:

125

Shape:

Straight
Construction:
  • Nitrile rubber gasket standard.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
    • Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size
Coupler x Adapter		 Max. Operating Pressure
- RDA2030BL* 2" x 1" 125 PSI
ADA2030EZ* RDA2030EZ* 2" x 3" 125 PSI
ADA3020EZ RDA3020EZ 3" x 2" 125 PSI
ADA3040EZ* RDA3040EZ* 3" x 4" 100 PSI
ADA4020EZ* - 4" x 2" 100 PSI
ADA4030EZ RDA4030EZ 4" x 3" 100 PSI
ADA6040EZ* RDA6040EZ 6" x 4" 75 PSI

* Parts are produced as a welded fabrication

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
