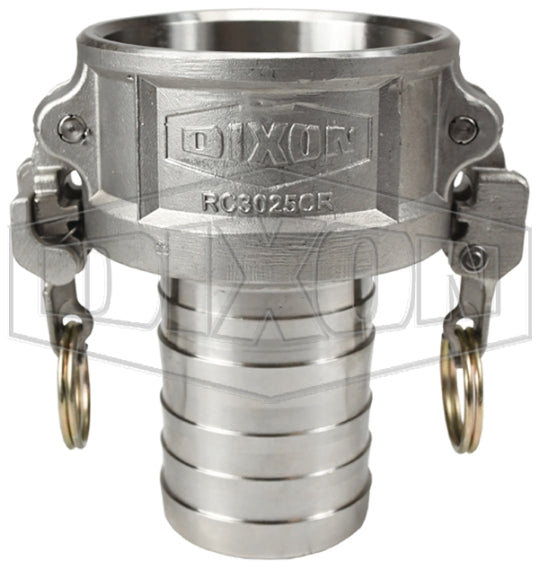

RC3025EZCR by Dixon Valve | EZ Boss-Lock Cam & Groove Reducer (Jump Size) Coupler | King Crimp Hose Shank | Type C | 3" Coupler x 2-1/2" Hose Shank | 316 Stainless Steel

RC3025EZCR by Dixon Valve | EZ Boss-Lock Cam & Groove Reducer (Jump Size) Coupler | King Crimp Hose Shank | Type C | 3" Coupler x 2-1/2" Hose Shank | 316 Stainless Steel

Sale price$257.35

Dixon Valve
EZ Boss-Lock Cam & Groove Reducer (Jump Size) Coupler | Type C | Coupler x King Crimp® Hose Shank

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
5–14 $241.91
15–29 $218.75
30+ $193.01
Discounts applied in cart/checkout.

Product Data:

Brand:
  • EZ Boss-Lock
MAWP:

150

Shape:

Straight
Features:
  • Resistant to accidental disconnection when dragged. The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm.
  • Rotating action helps keep the locking device free of debris.
  • Designed to protect critical parts from impact and to withstand rugged use.
Construction:
  • Nitrile Rubber gasket.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
316 Stainless Steel
Part Number		 Size
Coupler x King Crimp® Hose Shank		 Maximum Operating Pressure
RC3025EZCR 3" x 2-1/2" 150 PSI
150 PSI with King Crimp Ferrule system

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
