RAP123 by Dixon Valve | Rapp-it Pipe Repair Kit | Bandage Size: 3" Wide x 12ft Long
RAP123 by Dixon Valve | Rapp-it Pipe Repair Kit | Bandage Size: 3" Wide x 12ft Long
Dixon

RAP123 by Dixon Valve | Rapp-it Pipe Repair Kit | Bandage Size: 3" Wide x 12ft Long

Sale price$96.37

Dixon Valve & Coupling
Maintenance and Repair | Rapp-it Pipe Repair Kits

On-site emergency pipe repair in varied industrial applications: mining, processing, oil and gas, petrochemical, manufacturing, marine, and agricultural industries for use with steel, poly, PVC, copper, and concrete

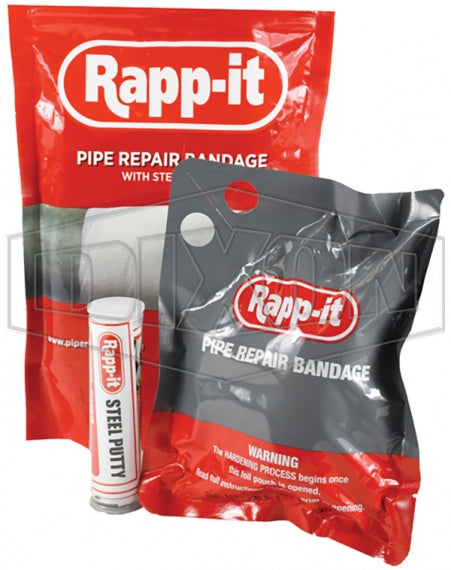

Kit includes woven fiberglass bandage infused with water-activated resin and a 90 mm stick of Rapp-it steel putty.

Product Data:
Features:
  • No mixing or measuring required; easy to apply.
  • Quickly contains leaking substances, keeping a workplace safe.
  • Tenacious bond: 5 to 10 min.; functional cure: approx. 30 min.
  • One product that can be used on a vast array of pipe sizes, shapes, and materials.
  • Suitable for use on acid lines, gas, most diluted chemicals, sea water, fuels, and oil.
  • Chemical resistance: resistant to hydrocarbons, ketones, esters, alcohols, halocarbons, aqueous salt solutions, dilute acids/bases.
  • Suitable for wet or dry pipe: apply under fresh and saltwater.
Materials:
  • Bandage: woven fiberglass.
  • Resin: water-activated polyurethane resin.
Specifications:
  • Pressure resistance up to 360 PSI (2,500kPA).
  • Shore D hardness at full cure (24 hours): 80 durometer.
  • Lap shear tensile strength on steel (1" x 1" x 1/16") 400kg (6.2MPa).
  • Compressive strength 8,000 PSI (55 MPa).
Temperatures:
  • Continuous -40°F to 250°F (-40°C to 121°C)
  • Intermittent -40°F to 300°F (-40°C to 149°C)
  • Heat resistance: 300°F (150°C)
Approvals:
  • NATO Certification 4730-66-1257893
How It Works:
  • Shut down pipes.
  • Apply gloves, then thoroughly clean and roughen the damaged pipe area with a metal file or wire brush. A clean, rough surface results in a successful repair.
  • Knead steel putty until it is a uniform grey color.
  • Apply firmly to the damaged area within 2-5 minutes of mixing.
  • Open the foil pouch and soak the bandage in freshwater for 10 seconds.
  • Squeeze bandage 1-2 times while in the water to help activation. It is important to apply the bandage before the putty is cured.

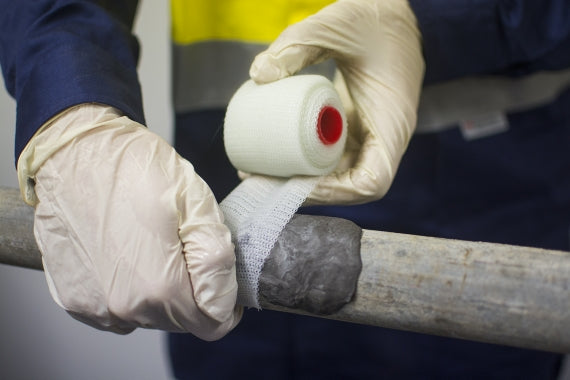

  • Quickly wrap the bandage around the damaged area, extending 50mm on either side of the leak.
  • Pull each layer tightly and firmly throughout the application, using your hand to mold and squeeze the layers together in a tightening motion.
  • Continue to squeeze the bandage with a rotating motion until resin stops foaming and is set.
  • Allow a minimum of 30 minutes for Rapp-it bandage to set rock hard.
Part Bandage Width Bandage Length
RAP122 2" 12ft
RAP123 3" 12ft
RAP124 4" 12ft
RAP164 4" 16ft
RAP304 4" 30ft

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
