R525-4X4 by Couplamatic | R5 Series Coupling | 3/16" Hose ID x 7/16x20 Thread Size JIC/SAE Dual Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Pack of 10
Couplamatic Systems Inc.
R5 Series - JIC/SAE Dual Seat - 45° Female Swivel
Package Quantity: 10 EA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $92.15 |
| 20–59 | $83.33 |
| 60+ | $73.52 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

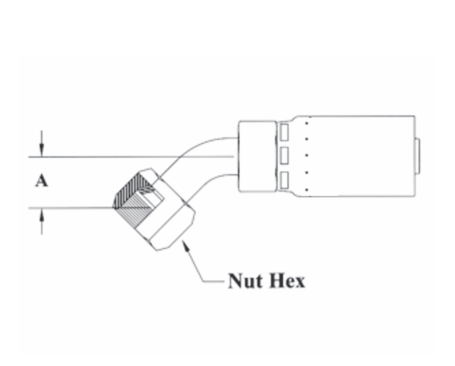

| Part Number | Hose ID | Tube Size | Thread Size | A-Drop Inches | Nut Hex | Cross Reference Part Numbers |
|---|---|---|---|---|---|---|
| Weatherhead 069E | ||||||
| R525-4X4 | 3/16" | 1/4" | 7/16x20 | 0.47" | 9/16" | 06904E-684 |
| R525-5X5 | 1/4" | 5/16" | 1/2x20 | 0.53" | 5/8" | 06905E-685 |
| R525-6X6* | 5/16" | 3/8" | 9/16x18 | 0.59" | 11/16" | 06906E-686 |
| R525-8X8 | 13/32" | 1/2" | 3/4x16 | 0.71" | 7/8" | 06908E-688 |
| R525-10X10 | 1/2" | 5/8" | 7/8x14 | 0.68" | 1" | 06910E-690 |
| R525-12X12* | 5/8" | 3/4" | 1-1/16x12 | 1.12" | 1-1/4" | 06912E-692 |
| R525-16X16* | 7/8" | 1" | 1-5/16x12 | 1.15" | 1-1/2" | 06916E-696 |
| R525-20X20 | 1-1/8" | 1-1/4" | 1-5/8x12 | 1.69" | 2" | - |
*JIC Seat & Thread Only
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
