R507-12X12 by Couplamatic | R5 Series Coupling | 5/8" Hose ID x 1-1/16x14 Thread Size SAE 45° Female Swivel | Straight | Trivalent Zinc Plating | Pack of 10

R507-12X12 by Couplamatic | R5 Series Coupling | 5/8" Hose ID x 1-1/16x14 Thread Size SAE 45° Female Swivel | Straight | Trivalent Zinc Plating | Pack of 10

Sale price$118.94

Couplamatic Systems Inc.
R5 Series - SAE 45° - Female Swivel

Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
5–19 $111.80
20–59 $101.10
60+ $89.21
Discounts applied in cart/checkout.

Product Data:

Series:
  • R5 Series
Shape:

Straight

Ends Configuration:
  • 3/4in Female SAE 45 Flare
  • 5/8in Hose Barb
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

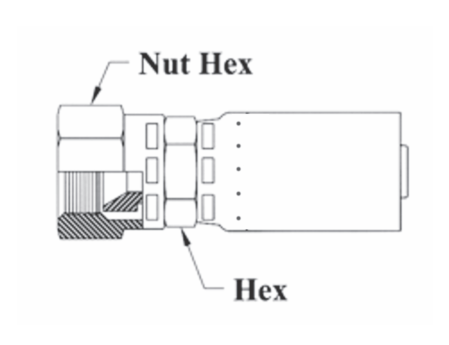

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Weatherhead 069E
R507-6X6 5/16" 3/8" 5/8x18 11/16" 3/4" 06906E-406
R507-12X12 5/8" 3/4" 1-1/16x14 1" 1-1/4" 06912E-412

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
