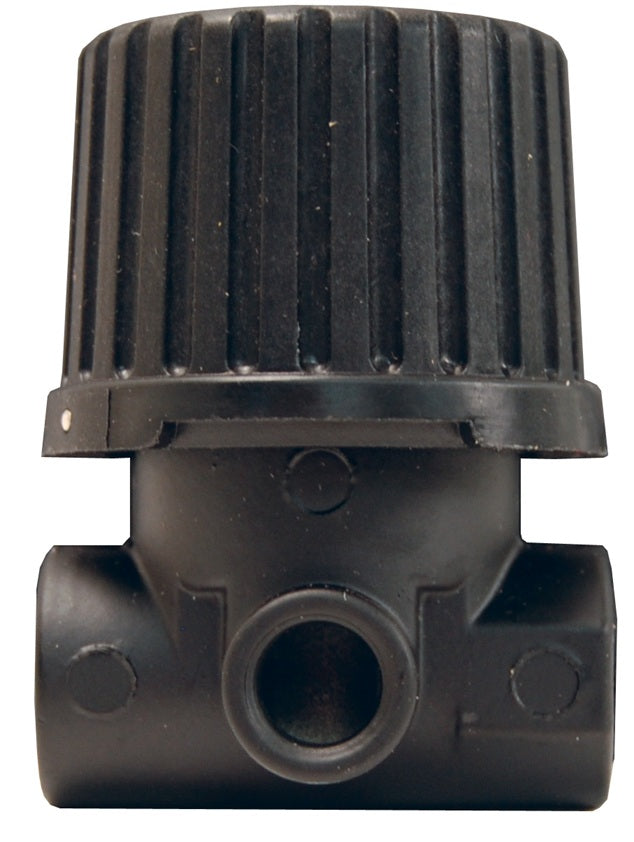

R46-200R by Dixon Valve | Series 1 | Non-Repairable General Purpose Regulator | 1/4" Female NPT | without Gauge

R46-200R by Dixon Valve | Series 1 | Non-Repairable General Purpose Regulator | 1/4" Female NPT | without Gauge

Sale price$50.81

Dixon Valve
Series 1 | Non-Repairable General Purpose Regulator

For use with Compressed air only.

5 to 125 PSIG outlet pressure adjustment range.
Buy More, Save More!
Quantity Price Each
10–39 $47.76
40–79 $43.19
80+ $38.11
Discounts applied in cart/checkout.

Product Data:

Series:
  • Series 1
Features:
  • Relieving piston allows reduction of downstream pressure when system is dead-ended.
  • Left to right flow.
  • Compact design and lightweight construction.
  • Wrench flats for easy installation.
  • Compressed air only.
Specifications:
  • 5 to 125 PSIG outlet pressure adjustment range.
  • Reliable pressure regulation at air flows up to 13 SCFM
  • Temperature range: -30°F to 150°F (-34° to 66°C)
Part Number Description Female NPT
R46-200RG Supplied with a GC620 Gauge 1/4"
R46-200R No Gauge 1/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
