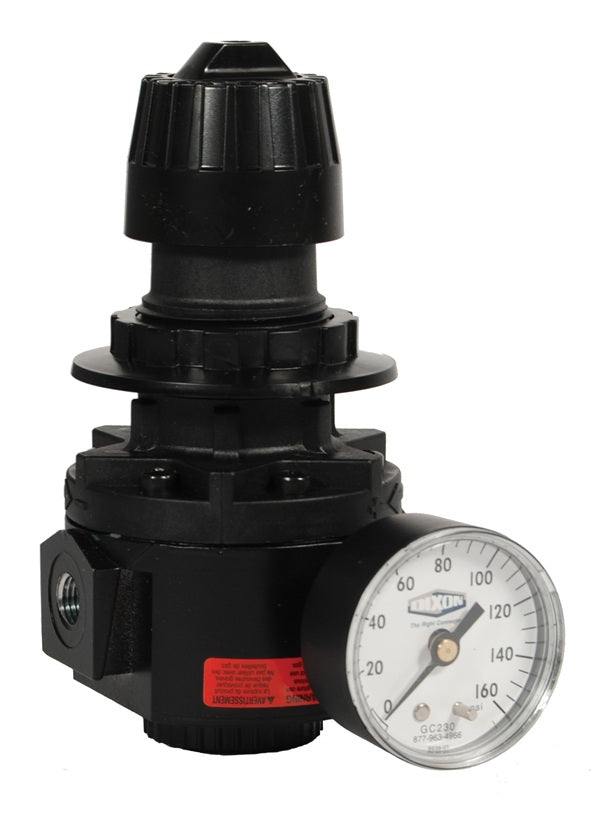

R26-03RG Wilkerson by Dixon Valve | R26-Series | Standard Regulator | 3/8" Size | 148 SCFM | with Gauge | 0-125 PSI Adjusting Range

R26-03RG Wilkerson by Dixon Valve | R26-Series | Standard Regulator | 3/8" Size | 148 SCFM | with Gauge | 0-125 PSI Adjusting Range

Sale price$182.00

Dixon Valve
Wilkerson | R26-Series | Standard Regulator

0-125 PSI adjusting range.
Buy More, Save More!
Quantity Price Each
5–19 $171.08
20–59 $154.70
60+ $136.50
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Wilkerson
Series:
  • R26 Series
Features:
  • 0-125 PSI adjusting range.
  • Non-rising push/pull locking adjustment knob.
  • Panel mount nut standard.
  • Excellent flow characteristics.
  • Can be installed with the adjusting knob in any position.
  • To increase regulated pressure, pull adjusting knob up and turn clockwise, to reduce pressure, turn knob counter clockwise.
  • Two 1/4" NPT gauge ports standard on models without gauge, one 1/4" NPT gauge port standard on models with gauge - can be used for additional outlet ports.
  • Models supplied without gauge use a GC230 gauge.
Specifications:
  • FRL's are designed for air service only, unless otherwise indicated.
  • Maximum operating conditions: 300 PSIG (20.7 bar) and 32°F to 150°F (0°Cto 66°C)
  • SCFM ratings at 100 PSIG inlet pressure.
Dimensions:
Part Number
With Gauge		 Part Number
Without Gauge		 Size Flow (SCFM)
R26-03RG R26-03R 3/8" 148 SCFM
R26-04RG R26-04R 1/4" 185 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
