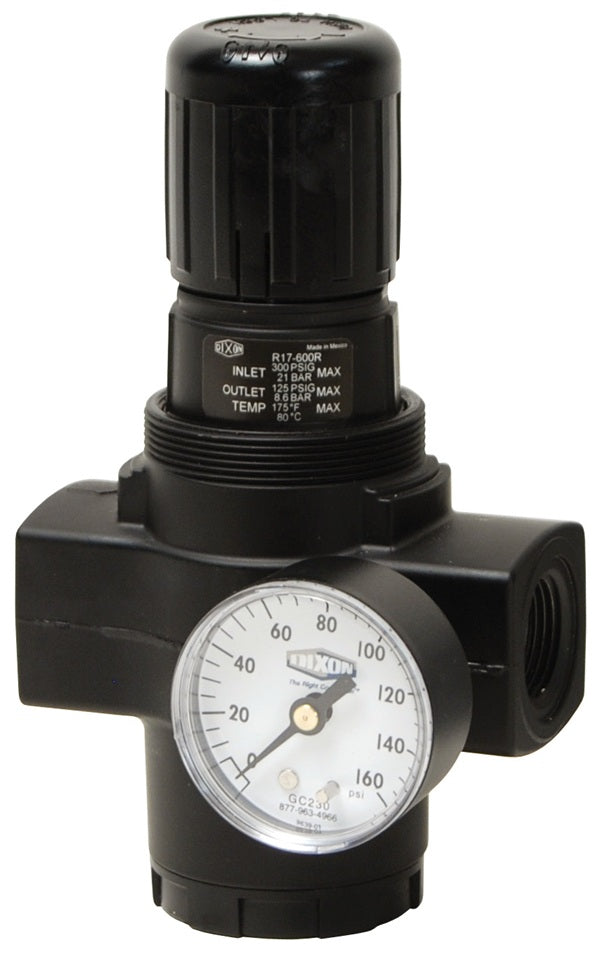

R17-B00RG by Dixon Valve | R17 Series 1 | Jumbo Regulator | 1-1/2" Port Size | 440 SCFM | with Gauge | 5-125 PSI Pressure Range

R17-B00RG by Dixon Valve | R17 Series 1 | Jumbo Regulator | 1-1/2" Port Size | 440 SCFM | with Gauge | 5-125 PSI Pressure Range

Sale price$336.73

Dixon Valve
R17 Series 1 | Jumbo Regulator

Pressure range: 5-125 PSI

In-line or modular installation.

For air service only.
Buy More, Save More!
Quantity Price Each
5–14 $316.53
15–29 $286.22
30+ $252.55
Discounts applied in cart/checkout.

Product Data:

Series:
  • R17 Series 1
Features:
  • In-line or modular installation.
  • Relieving type.
  • Two full-flow 1/4" NPT gauge ports.
  • RG models supplied with GC230 gauge.
Specifications:
  • Pressure range: 5-125 PSI.
  • Inlet pressure: 300 PSI.
  • Maximum temperature: 175°F (80°C).
  • SCFM ratings at 150 PSIG inlet pressure.
Dimensions:
With Gauge
Part Number 		Without Gauge
Part Number 		Port Size Flow (SCFM)
R17-600RG R17-600R 3/4" 440 SCFM
R17-800RG R17-800R 1" 480 SCFM
R17-A00RG R17-A00R 1-1/4" 400 SCFM
R17-B00RG R17-B00R 1-1/2" 440 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
