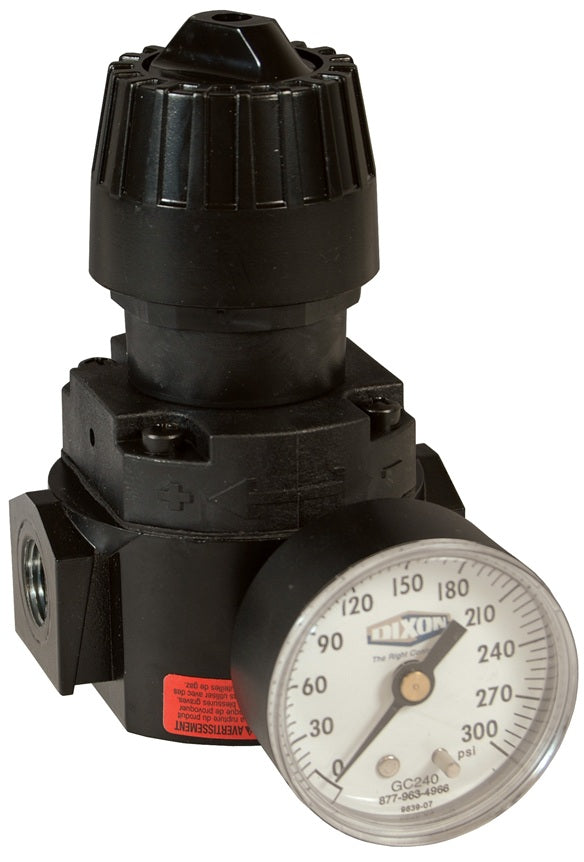

R16-03RHG Wilkerson by Dixon Valve | R16-Series | High Pressure Compact Regulator | 3/8" Size | 80.5 SCFM | with Gauge | 0-250 PSI Adjusting Range

R16-03RHG Wilkerson by Dixon Valve | R16-Series | High Pressure Compact Regulator | 3/8" Size | 80.5 SCFM | with Gauge | 0-250 PSI Adjusting Range

Sale price$127.29

Dixon Valve
Wilkerson | R16-Series | High Pressure Compact Regulator

0-250 PSI adjusting range.
Buy More, Save More!
Quantity Price Each
5–19 $119.65
20–59 $108.20
60+ $95.47
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Wilkerson
Series:
  • R16 Series
Features:
  • 0-250 PSI adjusting range.
  • Self-relieving standard.
  • Non-rising push/pull locking adjustment knob.
  • Panel mount nut standard.
  • Excellent flow characteristics.
  • Can be installed with the adjusting knob in any position.
  • Two 1/4" NPT gauge ports standard on models without gauge, one 1/4" NPT gauge port standard on models with gauge - can be used for additional outlet ports.
  • Models supplied without gauge use a GC240 gauge.
Specifications:
  • FRL's are designed for air service only, unless otherwise indicated.
  • Maximum operating conditions: 300 PSIG (20.7 bar) and 32°F to 150°F (0°C to 66°C)
  • SCFM ratings at 100 PSIG inlet pressure.
Dimensions:
Part Number
With Gauge		 Part Number
Without Gauge		 Size Flow (SCFM)
R16-02RHG R16-02R 1/4" 71.5 SCFM
R16-03RHG R16-03R 3/8" 80.5 SCFM
R16-04RHG R16-04R 1/2" 88.0 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
