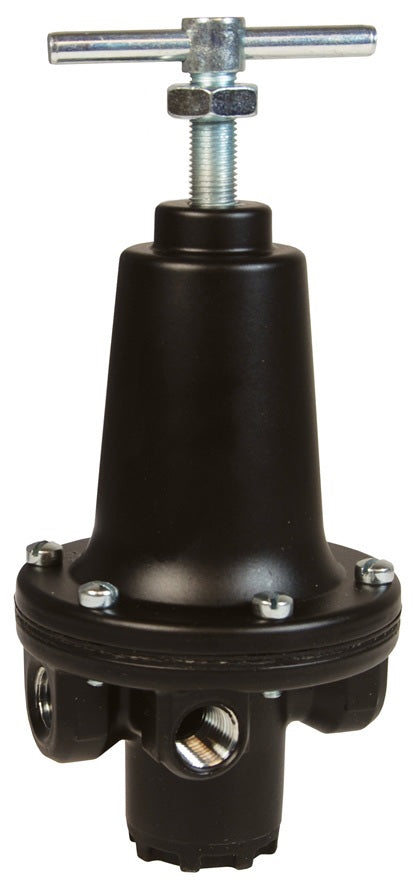

R119-08C Watts by Dixon Valve | R119-Series | High-Flow Regulator | 1" Size | 400 SCFM | without Gauge | 2 - 125 PSIG Pressure Range

R119-08C Watts by Dixon Valve | R119-Series | High-Flow Regulator | 1" Size | 400 SCFM | without Gauge | 2 - 125 PSIG Pressure Range

Sale price$247.73

Dixon Valve
Watts | R119-Series | Standard Regulator

Pressure Range: 2 - 125 PSIG (.15 - 8.5 bar)

For air service only.
Buy More, Save More!
Quantity Price Each
5–19 $232.87
20–59 $210.57
60+ $185.80
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Watts
Series:
  • R119 Series
Features:
  • Zinc body
  • Relieving type
  • Diaphragm operated
  • Spring adjustment mechanism
  • T-handle design
  • Acetal bottom plug
  • Aluminum spring cage
  • Uses a GC230 gauge
Specifications:
  • Pressure range 2 - 125 PSIG (.15 - 8.5 bar)
  • Inlet pressure: 300 PSIG (20.4 bar) maximum
  • Temperature range: 40°F (4°C) to 120°F (49°C)
  • FRL's are designed for air service only, unless otherwise indicated.
  • SCFM ratings given at 100 PSIG inlet pressure.
Dimensions:
Part Number
With Gauge		 Part Number
Without Gauge		 Size Flow (SCFM)
R119-06CG R119-06C 3/4" 300 SCFM
R119-08CG R119-08C 1" 400 SCFM
R119-12CG R119-12C 1/2" 500 SCFM
