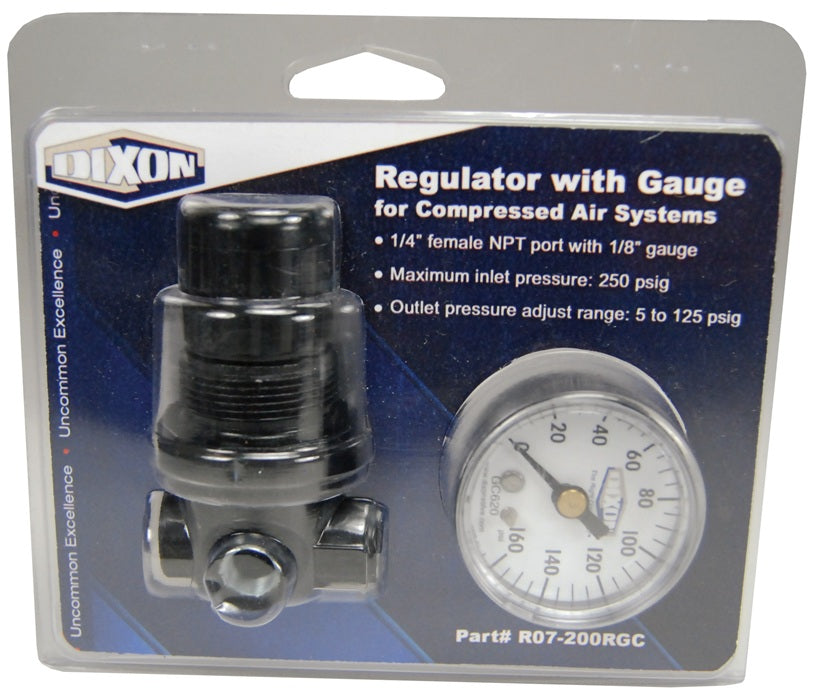

R07-200RGC by Dixon Valve | R07 Series 1 | Carded Miniature Regulator | 1/4" Port Size | 15 SCFM | with Gauge | 5-100 PSI Pressure Range

R07-200RGC by Dixon Valve | R07 Series 1 | Carded Miniature Regulator | 1/4" Port Size | 15 SCFM | with Gauge | 5-100 PSI Pressure Range

Sale price$78.69

Dixon Valve
R07 Series 1 | Carded Miniature Regulator

For air service only.

- Pressure Range 5-100 PSI
Buy More, Save More!
Quantity Price Each
5–19 $73.97
20–59 $66.89
60+ $59.02
Discounts applied in cart/checkout.

Product Data:

Series:
  • R07 Series 1
Special Properties:
  • Mini/Micro Size
Features:
  • Prepackaged in clear plastic units suitable for hanging on store peg racks or displays. The primary features of each unit are printed on the package. Each package contains 1 part and an instruction sheet.
  • Relieving type.
  • Supplied with a GC620 gauge.
Specifications:
  • Inlet pressure 250 PSI maximum.
  • Maximum temperature: 150°F (66°C).
  • Pressure range 5-100 PSI.
  • SCFM ratings at 100 PSIG inlet pressure.
Dimensions:
Part Number
with Gauge		 Port Size Flow (SCFM)
R07-200RGC 1/4" 15 SCFM
