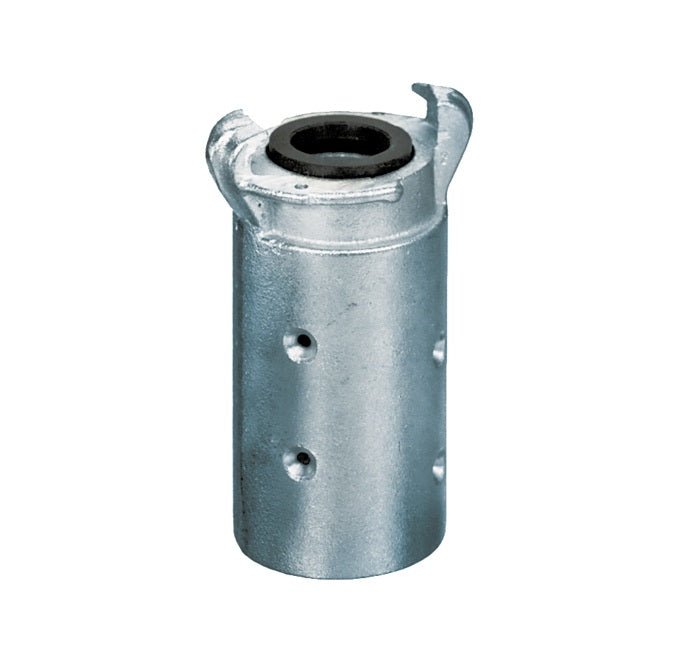

Q-AL4 by Kuriyama | Q-AL Series | Sandblast Hose Coupling | Two Lug | Standard Flow | 1-1/2" Hose ID | 2-3/8" Hose OD | Aluminum
Kuriyama of America Inc.
Q-AL Series | Sandblast Hose Coupling | Two Lug | Aluminum
Couplings designed specifically for sandblast hoses.
Two claw couple design for quick connection.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $23.42 |
| 40–79 | $21.17 |
| 80+ | $18.68 |
Discounts applied in cart/checkout.
Product Data:
Series:
MAWP:
150
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Specifications and Approvals:
What are the Features?
- Couplings designed specifically for sandblast hoses.
- Two claw couple design for quick connection.
- Full flow design removes air restrictions present in the standard design, and increases PSI available to the nozzle.
- Sheet metal screws supplied with each.
What are the Materials?
- Aluminum – ASTMB26, Grade 713.
| Part Number | Hose ID |
Hose OD |
PSI Rating at 70°F |
Gasket | Flow Size |
Weight Each (lbs) |
|---|---|---|---|---|---|---|
| Q-AL050 | 1/2" | 1-1/16" | 150 PSI | SBG | Standard | 0.15 lbs |
| Q-AL1 | 3/4" | 1-1/2" | 150 PSI | SBG | Standard | 0.36 lbs |
| Q-AL2 | 1, 1-1/4" | 1-7/8" | 150 PSI | SBG | Standard | 0.36 lbs |
| Q-AL3 | 1-1/4" | 2-5/32" | 150 PSI | SBG | Standard | 0.66 lbs |
| Q-AL4 | 1-1/2" | 2-3/8" | 150 PSI | SBG | Standard | 0.88 lbs |
| Q-AL5 | 1-1/2" | 2-3/8" | 150 PSI | SRG-2 | Full | 1.10 lbs |
| Q-AL6 | 2" | 2-7/8" | 150 PSI | SRG-2 | Full | 1.45 lbs |
