PWM22-4x6 by Couplamatic | Grip Crimp Pressure Wash Coupling | 1/4" Hose ID x M22x1.5 Thread Size Female Swivel | Straight | Trivalent Zinc Plating

PWM22-4x6 by Couplamatic | Grip Crimp Pressure Wash Coupling | 1/4" Hose ID x M22x1.5 Thread Size Female Swivel | Straight | Trivalent Zinc Plating

Sale price$10.80
Buy more, save moreDiscounts applied in cart/checkout.
Grip Crimp — Pressure Wash

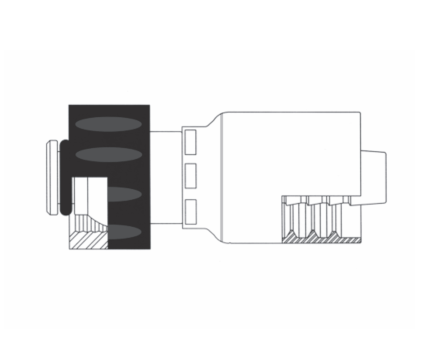

PWM22 Grip Crimp Pressure Wash Coupling — Female Swivel, Straight

PWM22 is the Female Swivel, Straight configuration of the Grip Crimp Pressure Wash system, terminating 1/4" through 3/8" pressure wash hose.

1

What are the main product features?
  • Grip-Crimp pressure wash couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
  • Sized for pressure wash hose — hose ends for 1/4" through 3/8" pressure wash hose.
  • Bite to the wire — the shell grips the hose reinforcement for a permanent termination.
  • 50 piece minimum purchase — these couplings are sold in 50 piece increments.
2

Which sizes are available?
Part Number Hose ID Thread Size
PWM22-4x6 1/4" M22x1.5
PWM22-6x6 3/8" M22x1.5

Additional Product Data:

Series:
  • Pressure Wash Series
Shape:

Straight

Material(s):
  • Steel
