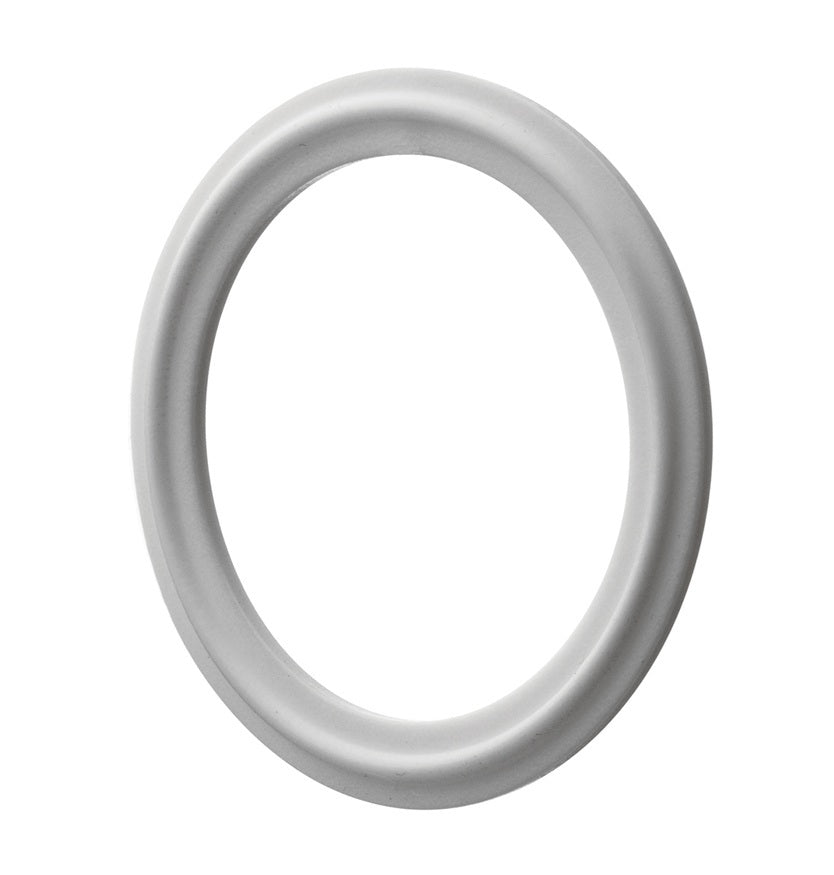

PTFE-40MPG300 by Kuriyama | PTFE-40MPG Series | Sanitary Tri-Clamp Gasket | 3" Size | White PTFE
Minimum Order Quantity: 5 Units
Kuriyama of America Inc.
Sanitary PTFE Tri-Clamp Gasket White
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $4.94 |
| 40–79 | $4.47 |
| 80+ | $3.95 |
Discounts applied in cart/checkout.
Product Data:
What are the Features?
- USP Class VI standard.
- Service Temperature Range: -40°F (-40°C) to +450°F (+232°C)
- Color Code: None
- PTFE (Teflon®) gaskets exhibit exceptional chemical resistance, and extremely high tolerances to heat and steam. However, they’re a plastic as opposed to an elastomer, and therefore not as compressible as other gasket materials, which can lead to difficulty in sealing if misaligned. They can experience cold flow, especially if clamps are misaligned or overtightened, resulting in a reduction in sealing pressure.
| Part Number | Size (in) |
Weight Each (lbs) |
|---|---|---|
| PTFE-40MPG100 | 1" | 0.013 lbs |
| PTFE-40MPG150 | 1-1/2" | 0.014 lbs |
| PTFE-40MPG200 | 2" | 0.018 lbs |
| PTFE-40MPG300 | 3" | 0.028 lbs |
| PTFE-40MPG400 | 4" | 0.040 lbs |
