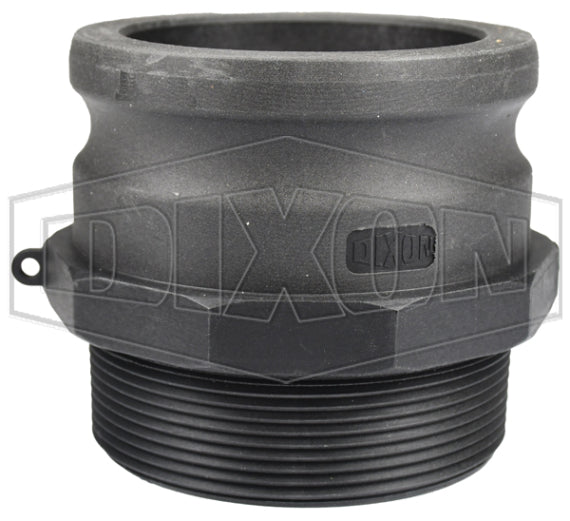

PPF400 by Dixon Valve | Cam & Groove Adapter | Type F | 4" Adapter x 4" Male NPT | Polypropylene

PPF400 by Dixon Valve | Cam & Groove Adapter | Type F | 4" Adapter x 4" Male NPT | Polypropylene

Sale price$24.23

Dixon Valve
Cam & Groove | Type F Adapter | Adapter x Male NPT

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
10–39 $22.78
40–79 $20.60
80+ $18.17
Discounts applied in cart/checkout.

Product Data:

MAWP:

50

Shape:

Straight

Cam & Groove Type:

Type F
Features:
  • 1/2" couplers and adapters will interchange with 3/4" couplers and adapters, only the threads and barbs are 1/2".
  • 1-1/4" couplers and adapters will interchange with 1-1/2" couplers and adapters, only the threads and barbs are 1-1/4".
Construction:
  • Manufactured from glass-filled polypropylene.
Specifications:
  • Maximum operating pressure: 125 PSI (1/2" - 1"), 100 PSI (1-1/4" - 2"), 60 PSI (3"), and 50 PSI (4"); recommendations based on the use of mating Dixon fittings at an ambient temperature of 70°F (21°C) with standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70°F (21°C) with a standard seal installed.
  • NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings.
Glass-Filled Polypropylene
Part Number		 Adapter x Male NPT Max. Operating
Pressure
PPF50 3/4" x 1/2" 125 PSI
PPF75 3/4" 125 PSI
PPF100 1" 125 PSI
PPF125 1-1/2" x 1-1/4" 100 PSI
PPF150 1-1/2" 100 PSI
PPF200 2" 100 PSI
PPF300 3" 60 PSI
PPF400 4" 50 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
