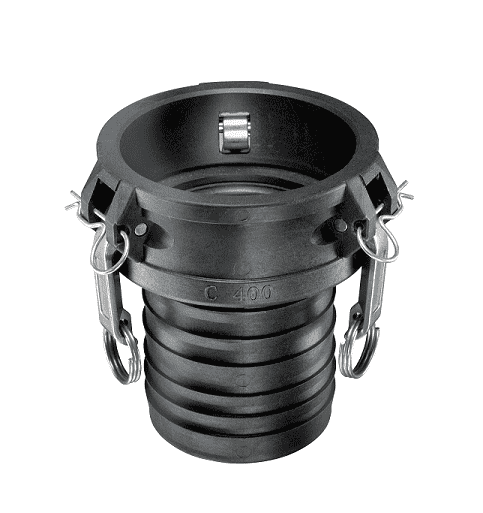

PPC050 by Kuriyama | Quick-Acting Coupling | Part C | 1/2" Female Coupler x 1/2" Hose Shank | Polypropylene

PPC050 by Kuriyama | Quick-Acting Coupling | Part C | 1/2" Female Coupler x 1/2" Hose Shank | Polypropylene

Sale price$11.46

Kuriyama Couplings™ - Quick-Acting Couplings - Part C - Female Coupler x Hose Shank - Polypropylene

Buy More, Save More!
Quantity Price Each
10–39 $10.77
40–79 $9.74
80+ $8.60
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type C

Ends Configuration:
  • 1/2in Female Cam & Groove
  • 1/2in Hose Barb
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Polypropylene material is glass-filled for added strength and durability.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • All 4" size female couplers are supplied with three locking handles to provide added stability.
Materials:
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • EPDM gaskets.
Part Number Size Weight (Lbs.)
PPC050 1/2 x 1/2" 0.17 lbs
PPC075 3/4" x 3/4" 0.19 lbs.
PPC100 1" x 1" 0.27 lbs.
PPC125 1-1/4" x 1-1/4" 0.4 lbs.
PPC150 1-1/2" x 1-1/2" 0.51 lbs.
PPC200 2" x 2" 0.61 lbs.
PPC300 3" x 3" 1.28 lbs.
PPC400 4" x 4" 1.7 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
