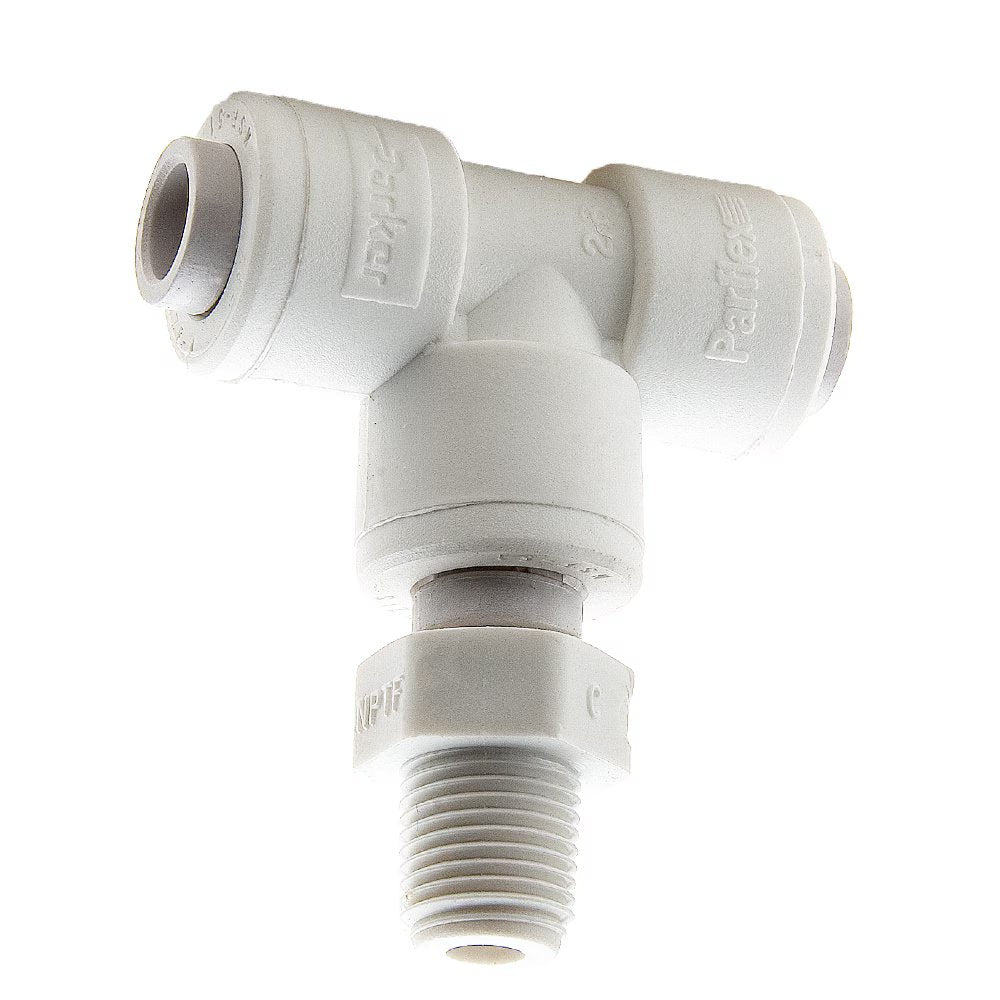

PP4MTS2 by Parker | TrueSeal™ Threaded Fittings | 1/4" Swivel Tube OD x 1/8" Male NPTF Thread | 1.88" Length | Tee | White | Polypropylene

PP4MTS2 by Parker | TrueSeal™ Threaded Fittings | 1/4" Swivel Tube OD x 1/8" Male NPTF Thread | 1.88" Length | Tee | White | Polypropylene

Sale price$4.78

by Parker Hannifin
TrueSeal™ Fittings:MTS - Male Tee Swivel

In stock
Buy More, Save More!
Quantity Price Each
20–39 $4.49
40–79 $4.06
80+ $3.59
Discounts applied in cart/checkout.

Product Data:

Brand:
  • TrueSeal™
Series:
  • MTS Series
Shape:

Tee
Product Features
  • Acetal and Black Polypropylene with EPDM seals and metal gripping collet standard
  • White Polypropylene with EPDM seals and plastic gripping collet standard
  • Black Kynar with Fluorocarbon (FKM) seals and black Kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray Acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets & Applications
  • Food
  • Potable Water
  • Chemical
  • Filtration
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range
  • Acetal and Kynar: 1/4", 5/16", 3/8" vacuum to 300 PSI (20.7 bar); 1/2" vacuum to 250 PSI (17.2 bar)
  • Polypropylene: 1/4", 3/8", 1/2" vacuum to 150 PSI (10.3 bar)
Temperature Range
  • Acetal: -20° to +180° F (-28.9° to +82.2° C)
  • Polypropylene: 0° to +225° F (-17.8° to +107.2° C)
  • Kynar: 0° to +275° F (-17.8° to +135° C)
Compatible Tubing
  • Polyethylene
  • Polypropylene**
  • Nylon**
  • Vinyl+
  • Fluoropolymer**
  • Polyurethane+
  • *Kynar®
Notes

* Registered trademark of The Arkema Group.
** Metal gripper required (-MG & -HBLK suffix).
+ Tube Support required.

Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. NPTF Thread Size Hex (C) M N Flow Diameter (D)
A4MTS2-MG - PP4MTS2 FB4MTS2-HBLK 1/4" 1/8" 9/16" .81" 1.60" .175"
A4MTS4-MG PPB4MTS4-MG PP4MTS4 FB4MTS4-HBLK 1/4" 1/4" 11/16" .81" 1.71" .175"
A5MTS2-MG - - - 5/16" 1/8" 9/16" 1.02" 1.78" .188"
A5MTS4-MG - - - 5/16" 1/4" 11/16" 1.02" 1.90" .188"
A5MTS6-MG - - - 5/16" 3/8" 13/16" 1.02" 1.90" .188"
A6MTS2-MG - - FB6MTS2-HBLK 3/8" 1/8" 9/16" 1.02" 1.75" .175"
A6MTS4-MG PPB6MTS4-MG PP6MTS4 FB6MTS4-HBLK 3/8" 1/4" 13/16" 1.02" 1.90" .250"
A6MTS6-MG PPB6MTS6-MG PP6MTS6 FB6MTS6-HBLK 3/8" 3/8" 13/16" 1.02" 1.90" .250"
A8MTS4-MG - - - 1/2" 1/4" 13/16" 1.20" 2.10" .240"
A8MTS6-MG - PP8MTS6 - 1/2" 3/8" 13/16" 1.20" 2.10" .375"
A8MTS8-MG - PP8MTS8 - 1/2" 1/2" 1" 1.20" 2.32" .375"
