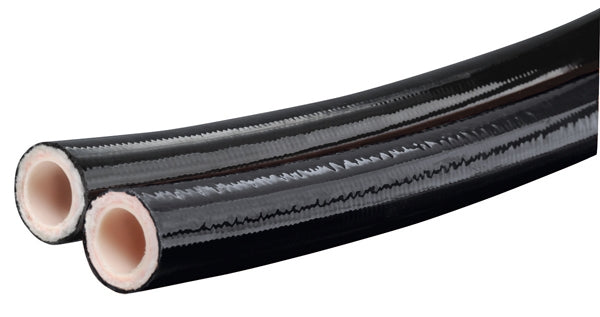

PF628TL-06-250R Alfagomma Piranhaflex™ by Kuriyama | PF628TL Series | SAE 100R8 | Twin Line Thermoplastic Hydraulic Hose | Conductive | 3/8" ID | 0.630" OD | 4000 PSI | 250ft Length

PF628TL-06-250R Alfagomma Piranhaflex™ by Kuriyama | PF628TL Series | SAE 100R8 | Twin Line Thermoplastic Hydraulic Hose | Conductive | 3/8" ID | 0.630" OD | 4000 PSI | 250ft Length

Sale price$2,655.01

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF628TL Series | SAE 100R8 | Twin Line Conductive Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for High pressure hydraulic applications such as industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.


Package Quantity: 250 Feet

Buy More, Save More!
Quantity Price Each
2–3 $2,495.71
4–9 $2,389.51
10+ $2,124.01
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
  • Piranhaflex
Series:
  • PF628TL Series
Color(s):
  • Black
Application: High pressure hydraulic applications.
Industrial equipment and vehicles (construction, agriculture, material handling, etc.).
Aerial equipment (PF628NCTL only).
Hydraulic oil and lubrication lines.
Hydraulic tools.		 SAE Rating: SAE 100R8
Other Ratings: REACH (Non-Conductive ONLY)
SAE J517
ANSI 92.2 (3/16" - 1/2", For vehicle mounted aerial devices)		 Tube: Copolyester
Reinforcement: Braided aramid fibers Cover: Pin pricked, abrasion resistant polyurethane, in conductive black (PF628TL), or non-conductive orange (PF628NCTL) versions.
Service Temperature Range: -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
*Maximum 140°F (+60°C) for water and phosphate-ester based hydraulic fluids
Other Features:
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Lightweight - Approximately 37% lighter weight than similar rubber hoses.
  • Pin Pricked Cover (PF628TL Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
  • Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
  • NOTE: Boxed 250' reels or boxed 50' coils. Maximum two pieces per 250' reel, minimum 50' piece length.
PF628TL Series | Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF628TL-04-250R 1/4" 6.5mm 0.485" 12.3mm 5000 PSI 2.00" 50mm 0.14 lbs/ft
PF628TL-06-250R 3/8" 9.7mm 0.630" 16.0mm 4000 PSI 2.50" 64mm 0.20 lbs/ft
PF628TL-08-250R 1/2" 12.9mm 0.820" 20.8mm 3500 PSI 3.50" 89mm 0.34 lbs/ft
PF628NCTL Series | Non-Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF628NCTL-04-250R 1/4" 6.5mm 0.485" 12.3mm 5000 PSI 2.00" 50mm 0.14 lbs/ft
PF628NCTL-06-250R 3/8" 9.7mm 0.630" 16.0mm 4000 PSI 2.50" 64mm 0.20 lbs/ft
PF628NCTL-08-250R 1/2" 12.9mm 0.820" 20.8mm 3500 PSI 3.50" 89mm 0.34 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
