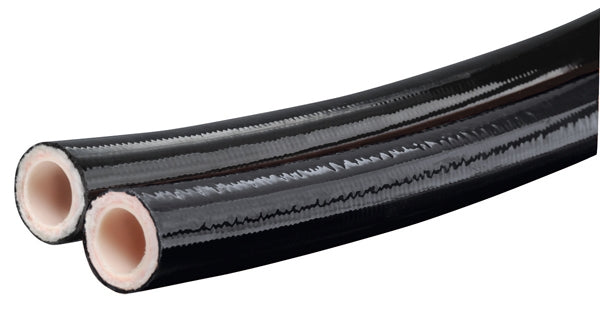

PF528TL-08-250R Alfagomma Piranhaflex™ by Kuriyama | PF528TL Series | SAE 100R8 | Kink Resistant Twin Line Thermoplastic Hydraulic Hose | Conductive | 1/2" ID | 0.935" OD | 3500 PSI | 250ft Length

PF528TL-08-250R Alfagomma Piranhaflex™ by Kuriyama | PF528TL Series | SAE 100R8 | Kink Resistant Twin Line Thermoplastic Hydraulic Hose | Conductive | 1/2" ID | 0.935" OD | 3500 PSI | 250ft Length

Sale price$3,670.75

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF528TL Series | SAE 100R8 | Twin Line Conductive Kink Resistant Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for High pressure hydraulic applications such as industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.


Package Quantity: 250 Feet

Buy More, Save More!
Quantity Price Each
2–3 $3,450.51
4–9 $3,303.68
10+ $2,936.60
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
  • Piranhaflex
Series:
  • PF528TL Series
Color(s):
  • Black
Application: High pressure hydraulic applications.
Industrial equipment and vehicles (construction, agriculture, material handling, etc.).
Aerial equipment (PF528NCTL only).
Hydraulic oil and lubrication lines.
Hydraulic tools.		 SAE Rating: SAE 100R8
Other Ratings: REACH (Non-Conductive ONLY) Tube: Nylon
Reinforcement: Braided, high tensile strength fibers Cover: Pin pricked, abrasion resistant polyurethane, in conductive black (PF528TL), or non-conductive orange (PF528NCTL) versions.
Service Temperature Range: -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Other Features:
  • Kink Resistant Technology - Proprietary design shown to exhibit 50% better resistance to kink initiation, and 17% less force to bend, versus competitive 100R8 hose in comparison testing.
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Lightweight - Approximately 24% lighter weight than similar rubber hoses.
  • Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
  • Pin Pricked Cover (PF528TL Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
  • NOTE: Boxed 250' long reels. Maximum two pieces per 250' reel, minimum 50' piece length.
PF528TL Series | Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF528TL-04-250R 1/4" 6.5mm 0.584" 14.8mm 5000 PSI 2.00" 50mm 0.22 lbs/ft
PF528TL-06-250R 3/8" 9.7mm 0.750" 19.1mm 4000 PSI 2.50" 64mm 0.31 lbs/ft
PF528TL-08-250R 1/2" 12.9mm 0.935" 23.7mm 3500 PSI 3.50" 89mm 0.47 lbs/ft
PF528NCTL Series | Non-Conductive
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF528NCTL-04-250R 1/4" 6.5mm 0.584" 14.8mm 5000 PSI 2.00" 50mm 0.22 lbs/ft
PF528NCTL-06-250R 3/8" 9.7mm 0.750" 19.1mm 4000 PSI 2.50" 64mm 0.31 lbs/ft
PF528NCTL-08-250R 1/2" 12.9mm 0.935" 23.7mm 3500 PSI 3.50" 89mm 0.47 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
