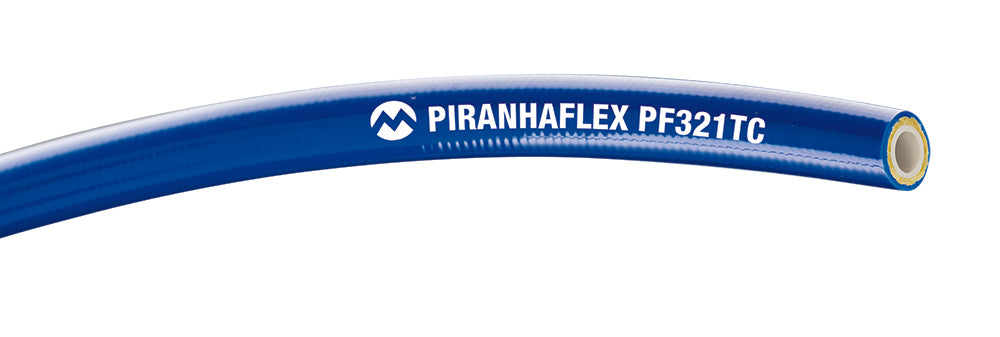

PF321TC-04-250R Alfagomma Piranhaflex™ by Kuriyama | PF321TC Series | Tank Charge - Compressor to Tank Fill Hose | 1/4" ID | 0.485" OD | 6000 PSI | 250ft Length

PF321TC-04-250R Alfagomma Piranhaflex™ by Kuriyama | PF321TC Series | Tank Charge - Compressor to Tank Fill Hose | 1/4" ID | 0.485" OD | 6000 PSI | 250ft Length

Sale price$1,205.73

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF321TC Series | Tank Charge - Compressor to Tank Fill Hose

Ideal for stationary applications as a fill tank for breathing air tanks, or compressed breathing air.


Package Quantity: 250 Feet

Buy More, Save More!
Quantity Price Each
4–7 $1,133.39
8–14 $1,085.16
15+ $964.58
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
  • Piranhaflex
Series:
  • PF321TC Series
Color(s):
  • Blue
Application: Compressed breathing air.
Stationary applications as a fill tank for breathing air tanks		 SAE Rating: -
Other Ratings: CGA (Grade E Breathing Air Standards)
REACH		 Tube: Copolyester
Reinforcement: Braided aramid fiber reinforcement Cover: Pin pricked, abrasion resistant polyurethane
Service Temperature Range: -40°F (-40°C) to +150°F (+65.5°C)
Other Features:
  • CGA Compliant - Meets CGA Grade E Air Breathing Standards. Overall air quality depends on all system components.
  • Extraction Resistant - Specially formulated tube minimizes extraction of particulates while in service.
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Lightweight - Approximately 37% lighter weight than similar rubber hoses.
  • Pin Pricked Cover - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
  • WARNING: NOT for use with explosive gases such as pure oxygen and hydrogen.
  • WARNING: NOT for use between regulator and breathing mask.
  • NOTE: Boxed 250' long reels. Maximum two pieces per 250' reel, minimum 50' piece length.
Part Number
250ft Reel		 ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF321TC-03-250R 3/16" 4.8mm 0.400" 10.2mm 6000 PSI 1.50" 38.1mm 0.06 lbs/ft
PF321TC-04-250R 1/4" 6.4mm 0.485" 12.3mm 6000 PSI 2.00" 50.8mm 0.07 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
