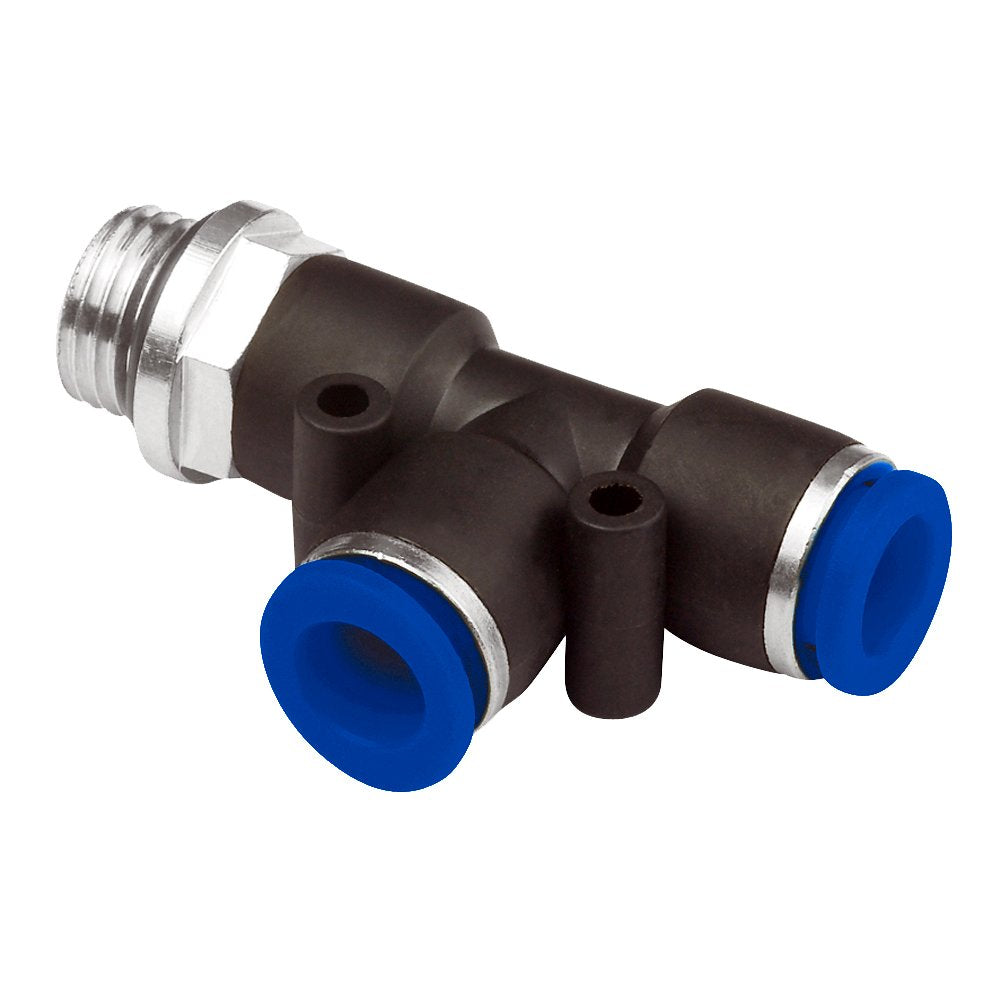

PCNY2605-04-02-04 by Brennan Inc. | -04 Tube x -02 Tube x -04 Male NPT Run | Tee | Glass Reinforced Nylon
Minimum Order Quantity: 5 Units
Brennan Inc.
Push to Connect: PCNY2605 - Tube x Tube x Male NPT Run Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.27 |
| 40–79 | $2.96 |
| 80+ | $2.61 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | OD | C NPT/UNF | F | G | H | H1 | L | Scale OZ |
| PCNY2605-02-01-02 | Glass Reinforced Nylon | 1/8" | 1/16" | 10mm | 0.33" | 0.93" | 0.35" | 0.57" | 0.24 |
| PCNY2605-02-02-02 | Glass Reinforced Nylon | 1/8" | 1/8" | 11mm | 0.33" | 0.93" | 0.35" | 0.57" | 0.31 |
| PCNY2605-04-02-04 | Glass Reinforced Nylon | 1/4" | 1/8" | 12mm | 0.43" | 1.48" | 0.73" | 0.69" | 0.39 |
| PCNY2605-04-04-04 | Glass Reinforced Nylon | 1/4" | 1/4" | 14mm | 0.43" | 1.12" | 0.41" | 0.69" | 0.58 |
| PCNY2605-04-06-04 | Glass Reinforced Nylon | 1/4" | 3/8" | 18mm | 0.43" | 1.14" | 0.43" | 0.69" | 0.84 |
| PCNY2605-05-02-05 | Glass Reinforced Nylon | 5/16" | 1/8" | 11mm | 0.53" | 1.38" | 0.49" | 0.91" | 0.50 |
| PCNY2605-05-04-05 | Glass Reinforced Nylon | 5/16" | 1/4" | 14mm | 0.53" | 1.34" | 0.45" | 0.91" | 0.69 |
| PCNY2605-06-02-06 | Glass Reinforced Nylon | 3/8" | 1/8" | 15mm | 0.63" | 1.63" | 0.60" | 1.04" | 0.81 |
| PCNY2605-06-04-06 | Glass Reinforced Nylon | 3/8" | 1/4" | 15mm | 0.63" | 1.63" | 0.60" | 1.04" | 0.81 |
| PCNY2605-06-06-06 | Glass Reinforced Nylon | 3/8" | 3/8" | 18mm | 0.63" | 1.60" | 0.55" | 1.04" | 1.19 |
| PCNY2605-08-04-08 | Glass Reinforced Nylon | 1/2" | 1/4" | 20mm | 0.87" | 2.17" | 0.79" | 1.38" | 1.85 |
| PCNY2605-08-06-08 | Glass Reinforced Nylon | 1/2" | 3/8" | 20mm | 0.87" | 2.17" | 0.79" | 1.38" | 1.93 |
| PCNY2605-08-08-08 | Glass Reinforced Nylon | 1/2" | 1/2" | 24mm | 0.87" | 2.07" | 0.79" | 1.38" | 2.19 |
