PCNY2404-08-04 by Brennan Inc. | -08 Tube x -04 Male NPT | Straight | Glass Reinforced Nylon
Minimum Order Quantity: 5 Units
Brennan Inc.

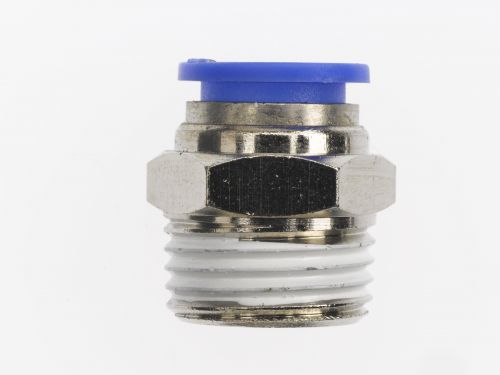

Push to Connect: PCNY2404 - Tube x Male NPT Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.98 |
| 40–79 | $7.22 |
| 80+ | $6.37 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Material | OD 1 | C NPT | F1 | F2 | H | K | Scale OZ |
| PCNY2404-02-02 | Glass Reinforced Nylon | 1/8" | 1/8" | 11mm | 0.07" | 0.283" | 0.472" | 0.25 |
| PCNY2404-02-04 | Glass Reinforced Nylon | 1/8" | 1/4" | 14mm | 0.07" | 0.315" | 0.591" | 0.59 |
| PCNY2404-04-02 | Glass Reinforced Nylon | 1/4" | 1/8" | 11mm | 5/32" | 0.472" | 0.472" | 0.26 |
| PCNY2404-04-04 | Glass Reinforced Nylon | 1/4" | 1/4" | 14mm | 5/32" | 0.374" | 0.590" | 0.50 |
| PCNY2404-04-06 | Glass Reinforced Nylon | 1/4" | 3/8" | 18mm | 3/16" | 0.295" | 0.767" | 0.88 |
| PCNY2404-05-02 | Glass Reinforced Nylon | 5/16" | 1/8" | 13mm | 3/16" | 0.787" | 0.551" | 0.45 |
| PCNY2404-06-02 | Glass Reinforced Nylon | 3/8" | 1/8" | 16mm | 5/32" | 0.894" | 0.689" | 0.79 |
| PCNY2404-06-04 | Glass Reinforced Nylon | 3/8" | 1/4" | 16mm | 6mm | 0.807" | 0.689" | 0.73 |
| PCNY2404-06-06 | Glass Reinforced Nylon | 3/8" | 3/8" | 18mm | 9/32" | 0.689" | 0.767" | 0.97 |
| PCNY2404-06-08 | Glass Reinforced Nylon | 3/8" | 1/2" | 22mm | 9/32" | 0.610" | 0.945" | 2.00 |
| PCNY2404-08-04 | Glass Reinforced Nylon | 1/2" | 1/4" | 22mm | 1/4" | 1.1" | 0.945" | 1.62 |
| PCNY2404-08-06 | Glass Reinforced Nylon | 1/2" | 3/8" | 22mm | 3/8" | 1.1" | 0.945" | 0.89 |
| PCNY2404-08-08 | Glass Reinforced Nylon | 1/2" | 1/2" | 22mm | 9/32" | 1.1" | 0.945" | 2.51 |
