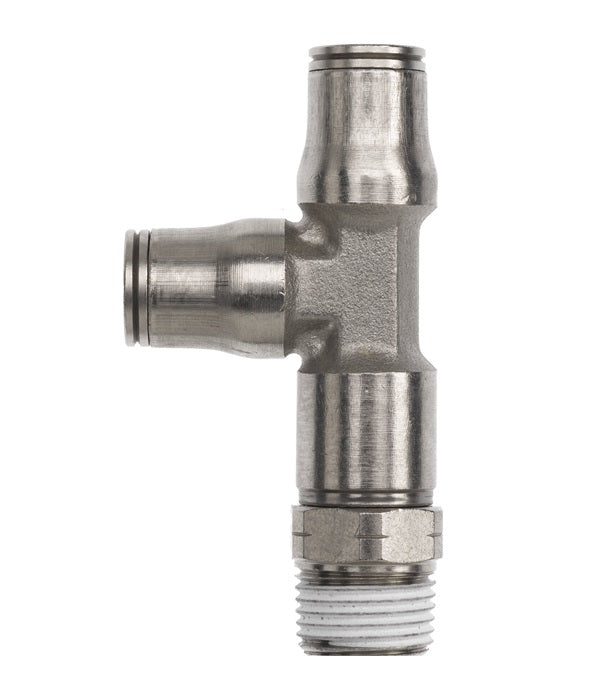

PCNB2605-08-06-08 by Brennan Inc. | -08 Tube x -06 Tube x -08 Male NPT Run | Tee | Nickel Plated Brass

PCNB2605-08-06-08 by Brennan Inc. | -08 Tube x -06 Tube x -08 Male NPT Run | Tee | Nickel Plated Brass

Sale price$27.60

Brennan Inc.
Push to Connect: PCNB2605 - Tube x Tube x Male NPT Run Tee
Buy More, Save More!
Quantity Price Each
10–39 $25.94
40–79 $23.46
80+ $20.70
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 1/2in Push-to-Connect
  • 3/8in Push-to-Connect
  • 1/2in Male NPT
  • Some Ends Match
Material(s):
  • Brass
Part Number Material OD C NPT E F G H1 H2 J K L Scale OZ
PCNB2605-04-02-04 Nickel Plated Brass 1/4" 1/8" 0.30" 13mm .498" 0.87" 0.93" 0.32" 0.55" 1.12" 1.16
PCNB2605-04-04-04 Nickel Plated Brass 1/4" 1/4" 0.43" 14mm 0.49" 0.87" 0.97" 0.32" 0.59" 1.12" 1.38
PCNB2605-06-04-06 Nickel Plated Brass 3/8" 1/4" 0.43" 18mm 0.67" 1.14" 1.20" 0.47" 0.77" 1.48" 2.57
PCNB2605-08-06-08 Nickel Plated Brass 1/2" 3/8" 0.45" 22mm 0.79" 1.22" 1.46" 0.59" 0.94" 1.61" 3.53

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
