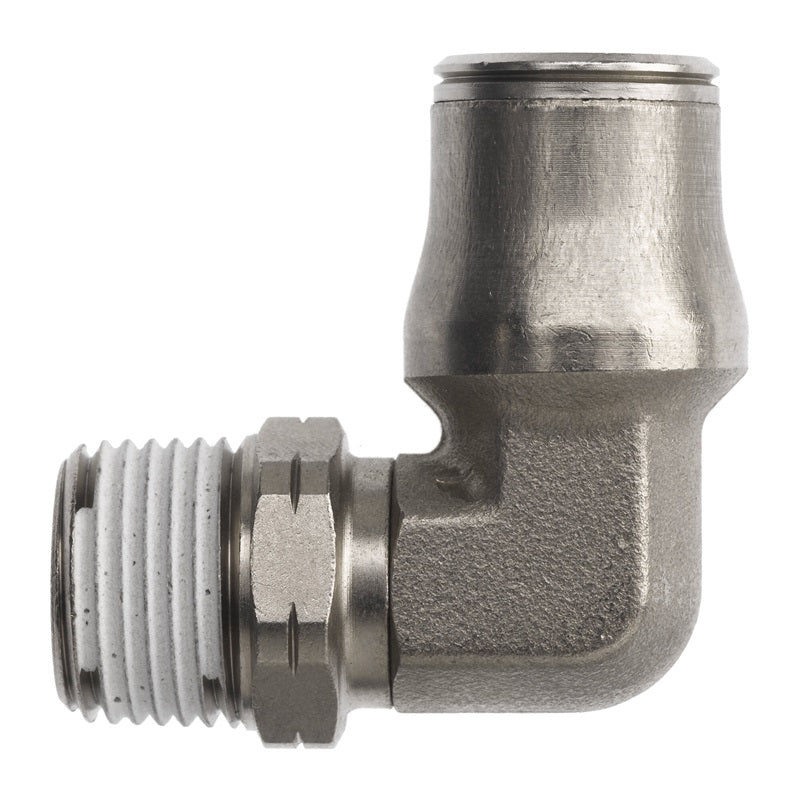

PCNB2501-06-02 by Brennan Inc. | -06 Tube x -02 Male NPT | 90° Elbow | Nickel Plated Brass
Brennan Inc.
Push to Connect: PCNB2501 - Tube x Male NPT 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $19.78 |
| 40–79 | $17.88 |
| 80+ | $15.78 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | OD | C NPT | E | F | G | H | J | K | L | Scale OZ |
| PCNB2501-04-02 | Nickel Plated Brass | 1/4" | 1/8" | 0.30" | 13mm | 0.49" | 0.69" | 0.32" | 0.47" | 0.87" | 0.62" |
| PCNB2501-04-04 | Nickel Plated Brass | 1/4" | 1/4" | 0.43" | 14mm | 0.49" | 0.75" | 0.32" | 0.59" | 0.87" | 0.81" |
| PCNB2501-04-06 | Nickel Plated Brass | 1/4" | 3/8" | 0.45" | 18mm | 0.49" | 0.75" | 0.32" | 0.77" | 0.87" | 1.12" |
| PCNB2501-05-02 | Nickel Plated Brass | - | - | - | - | - | - | - | - | - | - |
| PCNB2501-06-02 | Nickel Plated Brass | 3/8" | 1/4" | 0.43" | 15mm | 0.67" | 0.93" | 0.47" | 0.63" | 1.14" | 1.40" |
| PCNB2501-06-04 | Nickel Plated Brass | 3/8" | 1/4" | 0.43" | 15mm | 0.67" | 0.93" | 0.47" | 0.63" | 1.14" | 1.40" |
| PCNB2501-06-06 | Nickel Plated Brass | 3/8" | 3/8" | 0.45" | 18mm | 0.67" | 1.02" | 0.47" | 0.77" | 1.14" | 1.57" |
| PCNB2501-06-08 | Nickel Plated Brass | 3/8" | 1/2" | 0.59" | 22mm | 0.67" | 1.06" | 0.47" | 0.94" | 1.14" | 2.27" |
| PCNB2501-08-04 | Nickel Plated Brass | 1/2" | 1/4" | 0.43" | 15mm | 0.79" | 1.14" | 0.59" | 0.63" | 1.22" | 1.65" |
| PCNB2501-08-06 | Nickel Plated Brass | 1/2" | 3/8" | 0.45" | 18mm | 0.79" | 1.14" | 0.59" | 0.77" | 1.22" | 1.90" |
| PCNB2501-08-08 | Nickel Plated Brass | 1/2" | 1/2" | 0.75" | 22.2mm | 0.78" | 1.25" | 0.62" | 0.99" | 1.25" | 2.41" |
