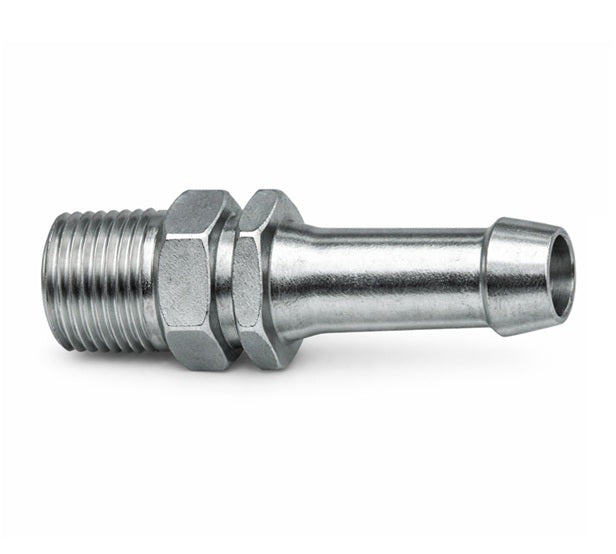

P300221 (HX-221) PUNCH-LOK® by PT-Coupling | Hex Lok Nipple Hose Fitting | 1/4" Hose Barb x 1/4" Male NPT | Single Groove | Plated Carbon Steel | 24 Pieces/Box

P300221 (HX-221) PUNCH-LOK® by PT-Coupling | Hex Lok Nipple Hose Fitting | 1/4" Hose Barb x 1/4" Male NPT | Single Groove | Plated Carbon Steel | 24 Pieces/Box

Sale price$105.95

PT Coupling
PUNCH-LOK® Hose Fitting | Hex Lok Nipple | Hose Barb x Male NPT | Plated Carbon Steel

PUNCH-LOK® single and double groove hose fittings of all types are designed and engineered for use with PUNCH-LOK® clamps to make connections which will withstand high pressure services.

Package Quantity: 24 Units

Buy More, Save More!
Quantity Price Each
5–19 $99.59
20–59 $90.06
60+ $79.46
Discounts applied in cart/checkout.

Product Data:

Brand:
  • PUNCH-LOK
Series:
  • Hex Lok-Nipples
Shape:

Straight
Overview:
  • PUNCH-LOK® single and double groove hose fittings of all types are designed and engineered for use with PUNCH-LOK® clamps to make connections which will withstand high pressure services.
  • The shape of the grooves eliminates damage to the inner wall of the hose. The PUNCH-LOK® clamp brings the hose wall into the grooves with even compression around the fittings.
  • Carbon steel steam hose fittings are available in sizes ranging from 1/2" to 1" and include tie wires.
  • Hex Steel Lok-nipples are cut from hexagon shaped cold rolled steel bar stock with NPT thread and tapered end for easy application.
Part
Name		 Item # Hose Size Standard Pipe Thread Length Number Of Barbs Quantity/Box
HX-221 P300221 1/4" 1/4" 2" 1 24
HX-331 P300331 3/8" 3/8" 2-1/2" 1 24
HX-442 P300442 1/2" 1/2" 3-1/2" 2 12
HX-641 P300641 3/4" 1/2" 3-1/8" 1 12
HX-661 P300661 3/4" 3/4" 3-1/8" 1 12
