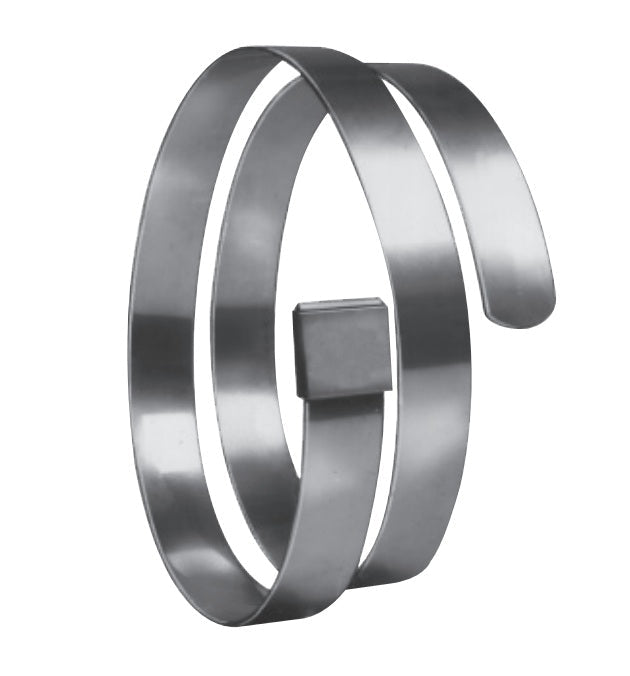

P142400 (PO-24-S) PUNCH-LOK® by PT-Coupling | Open-End Clamp | 6" Clamp ID | 5/8" Band Width | 201 Stainless Steel | 50 Pieces/Carton

Sale price$292.45

PT Coupling
PUNCH-LOK® | Open-End Clamp | 201 Stainless Steel

Non-spring coiled to a given diameter but not laced up through the lok.

Made in the USA.

Package Quantity: 50 Units


Buy More, Save More!
Quantity Price Each
5–14 $274.90
15–29 $248.58
30+ $219.34
Discounts applied in cart/checkout.

Product Data:

Brand:
  • PUNCH-LOK
Series:
  • Open-End Clamps
Material(s):
  • 201 Stainless Steel
Features:
  • Double-Wrapped and formed to a given diameter.
  • Clamps come ready for application.
  • Non-spring coiled to a given diameter but not laced up through the Lok.
  • Made in the USA
To Order:
  • Measure the Outside Diameter of the hose with its fitting inserted.
  • Then select the next larger Inside Diameter clamp by catalog number. Using the hose size in inches is not sufficient information, because different thickness of hose will result in varying outside diameters.
Part
Name
Item # Clamp ID Band Width Quantity/Carton
PO-311-S P140311 1-3/8" 3/8" 100
PO-316-S P140316 2" 3/8" 100
PO-325-S P140325 3-1/8" 3/8" 100
PO-8-S P140800 2" 5/8" 100
PO-10-S P141000 2-1/2" 5/8" 50
PO-12-S P141200 3" 5/8" 50
PO-14-S P141400 3-1/2" 5/8" 50
PO-16-S P141600 4" 5/8" 50
PO-18-S P141800 4-1/2" 5/8" 50
PO-20-S P142000 5" 5/8" 50
PO-24-S P142400 6" 5/8" 50
PO-28-S P142800 7" 5/8" 25
PO-32-S P143200 8" 5/8" 25
PO-36-S P143600 9" 5/8" 25
PO-40-S P144000 10" 5/8" 25
PO-48-S P144800 12" 5/8" 25

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
