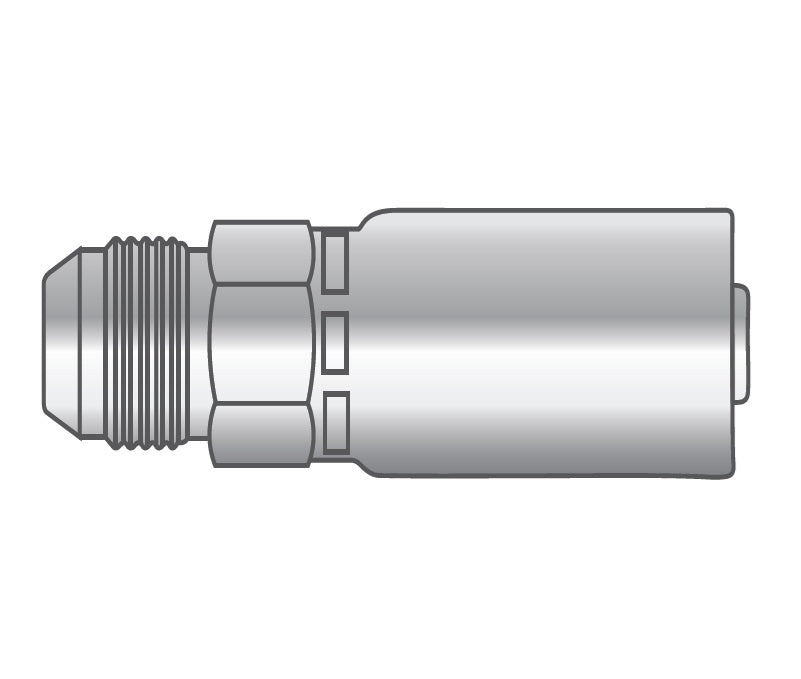

P-0405-MJIC Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -04 Hose ID x -05 Male JIC 37° Solid | Carbon Steel

P-0405-MJIC Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -04 Hose ID x -05 Male JIC 37° Solid | Carbon Steel | Pack of 5

Sale price$43.50

Kuriyama of America Inc.
Alfagomma | P Series | One-Piece Hydraulic Hose Fitting | Hose Barb x Male JIC 37° Seat Solid


Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
10–39 $40.89
40–79 $36.98
80+ $32.63
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
  • Piranhaflex
Series:
  • P Series
Ends Configuration:
  • 1/4in Hose Barb
  • 5/16in Male JIC
About P-Series Fittings:
  • One-piece non-skive crimp fitting for use with:
    • Piranhaflex™ PF321TC hose only.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Carbon Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 Hex Dia. Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) x TPI		 (mm) CH1
(mm)		 lbs/each
P-0404-MJIC 04 1/4" 6.4mm 04 1/4-18 30.9mm 17mm 0.11 lbs
P-0405-MJIC 04 1/4" 6.4mm 05 1/2-20 30.9mm 19mm 0.11 lbs
P-0406-MJIC 04 1/4" 6.4mm 06 9/16-18 33.4mm 17mm 0.13 lbs
P-0605-MJIC 06 3/8" 9.5mm 05 1/2-20 33.6mm 19mm 0.18 lbs
P-0606-MJIC 06 3/8" 9.5mm 06 9/16-18 33.7mm 22mm 0.16 lbs
P-0608-MJIC 06 3/8" 9.5mm 08 3/4-16 36.6mm 19mm 0.24 lbs
P-0808-MJIC 08 1/2" 12.7mm 08 3/4-16 35.2mm 22mm 0.27 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
