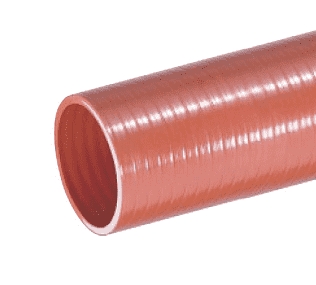

ORV300X100 Tigerflex by Kuriyama | ORV Series | Heavy Duty Oil Resistant Suction Hose | 3" ID | PVC | 100ft Length
Kuriyama Tigerflex ORV™ Series Heavy Duty Oil Resistant PVC Suction Hose
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,231.65 |
| 8–14 | $1,179.24 |
| 15+ | $1,048.22 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
65
Tubing Construction:
Specifications and Approvals:
SPECIFICATIONS
| Application: | Environmental clean-up, Oil skimming, Oil slurries, Oil suction, Vapor recovery - hydrocarbon emmissions | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Oil Resistant PVC |
| Reinforcement: | Rigid PVC Helix | Cover: | N/A |
| Temperature Range: | 5 deg. F (-15 deg. C) to 150 deg. F (+65.5 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(10) |
| Other Features: | |||
|
|||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| ORV075X100 | 3/4" | 19.0mm | 1.01" | 25.6mm | 100 PSI | 60 PSI | 28 in .Hg | 26 in .Hg | 3" | 100ft | 0.19 lbs |
| ORV100X100 | 1" | 25.4mm | 1.26" | 32.0mm | 80 PSI | 50 PSI | 28 in .Hg | 26 in .Hg | 3" | 100ft | 0.24 lbs |
| ORV125X100 | 1-1/4" | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 100ft | N/A |
| ORV150X100 | 1-1/2" | 38.1mm | 1.76" | 44.6mm | 60 PSI | 40 PSI | 28 in .Hg | 24 in .Hg | 5" | 100ft | 0.35 lbs |
| ORV200X100 | 2" | 50.8mm | 2.32" | 59.0mm | 60 PSI | 40 PSI | 28 in .Hg | 24 in .Hg | 7" | 100ft | 0.55 lbs |
| ORV300X100 | 3" | 76.2mm | 3.41" | 86.7mm | 65 PSI | 40 PSI | 28 in .Hg | 22 in .Hg | 10" | 100ft | 1.09 lbs |
