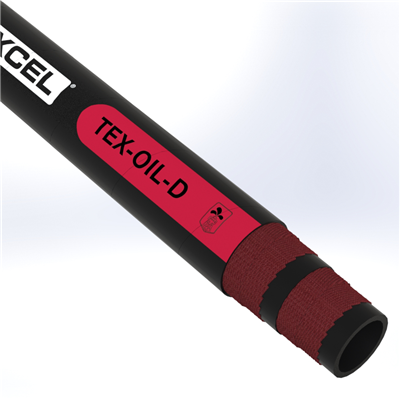

OIL-D-3.0-100 by Texcel | TEX-OIL-D Series | Oil Discharge Hose | 3" Hose ID | 200 PSI | Black
Texcel
TEX-OIL-D Series | 200psi Oil Discharge Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $30.64 |
| 40–79 | $27.71 |
| 80+ | $24.45 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | Soft-wall discharge hose designed for use on trucks, docks and barges. | Tube: | Black, Nitrile, 55% aromatics (ORS) |
| Cover: | Black, Neoprene | Reinforcement: | 4 high tensile tire cord plies |
| Safety Factor: | 4:1 | Temperature: | -40°F to +200°F |
| Static Grounding: | Braided copper wire runs length of hose | Branding: | TEXCEL® TEX-OIL-D - PETROLEUM OIL TRANSFER / DISCHARGE HOSE 200 PSI W.P. |
| Safety Note: | Not recommend for use on reels | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Lbs./ft |
|---|---|---|---|---|
| OIL-D-1.5-100 | 1-1/2" | 2" | 200 psi | 0.96 lbs |
| OIL-D-2.0-100N | 2" | 2-32/64" | 200 psi | 1.12 lbs |
| OIL-D-3.0-100 | 3" | 3-32/64" | 200 psi | 1.89 lbs |
| OIL-D-4.0-100 | 4" | 4-34/64" | 200 psi | 2.68 lbs |
| OIL-D-6.0-100N | 6" | 6-54/64" | 200 psi | 5.89 lbs |
| OIL-D-8.0-100 | 8" | 9-8/64" | 200 psi | 7.86 lbs |
