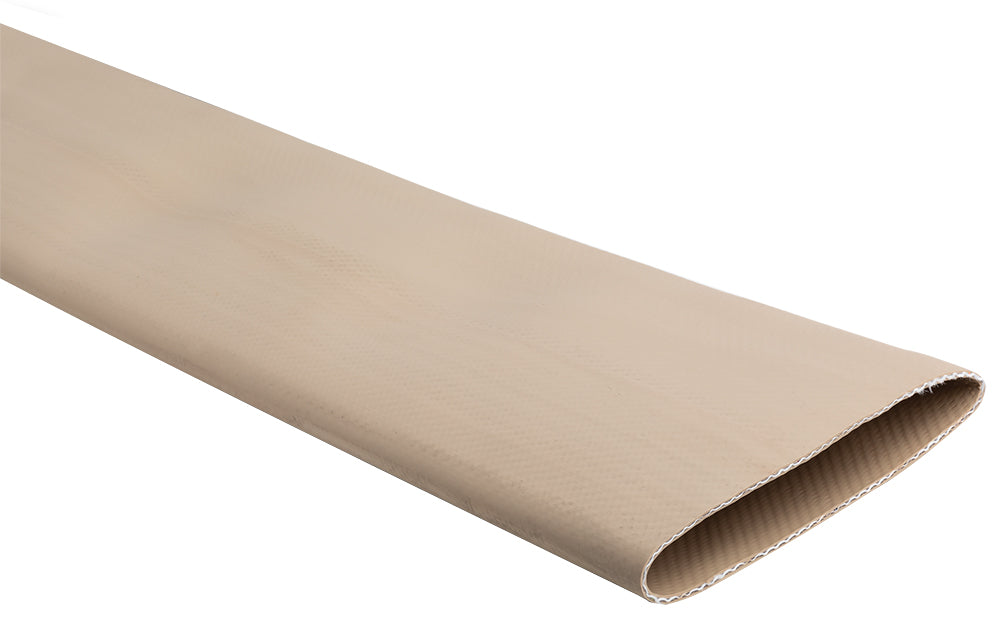

OFOIL-300X200 OROFLEX® OIL by Kuriyama | OFOIL Series | Oil Transfer Layflat Hose | Polyurethane | 3" Size | 3.059" Hose ID | Tan | 200ft Length

OFOIL-300X200 OROFLEX® OIL by Kuriyama | OFOIL Series | Oil Transfer Layflat Hose | Polyurethane | 3" Size | 3.059" Hose ID | Tan | 200ft Length

Sale price$2,132.18

Package Quantity: 200 Foot

Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

Applications: Brackish and seawater.
Fluid transfer.
Fuels and oils transport.
Construction: Polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Four electrical wires protected with a braided sheet of polyester to help prevent static build up.
Service Temperature Range: -58°F (-50°C) to +150°F (+65°C);
Intermittent service to +175°F (+79°C)
Other Features:
  • Premium Polyurethane (TPU) Material - Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products.
  • Grounding Wires - Hose contains four wires to help prevent the buildup of static electricity for added safety.
  • Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting.
  • Longer Lengths - Manufactured in special 660 foot lengths to reduce possible leaking points.
  • Smooth TPU Tube - Provides low friction loss.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • MIL-Spec - In compliance with MIL-PRF-370.
  • Made in Europe.
Part Number
200ft		 Part Number
660ft		 Size Hose ID Wall
Thickness		 Working
Pressure
(PSI)		 Burst
Pressure
(in) (mm) (in) (mm) (in) at 68°F at 68°F
OFOIL-200X200 OFOIL-200X660 2" 50.8mm 2.059" 52.3mm 0.087" 150 PSI 600 PSI
OFOIL-300X200 OFOIL-300X660 3" 76.2mm 3.059" 77.7mm 0.093" 150 PSI 600 PSI
OFOIL-400X200 OFOIL-400X660 4" 101.6mm 4.059" 103.1mm 0.106" 150 PSI 600 PSI
OFOIL-600X200 OFOIL-600X660 6" 152.4mm 6.059" 153.9mm 0.138" 150 PSI 600 PSI

Additional Product Data:

Brand:
  • OROFLEX OIL
Series:
  • OFOIL Series
Color(s):
  • Tan

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
