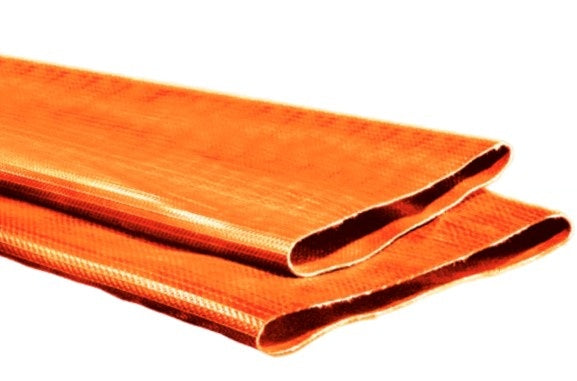

OFDG-600X660 OROFLEX® DRAG by Kuriyama | OFDG Series | Manure Drag Layflat Hose | Polyurethane | 6" Size | 6.003" Hose ID | Orange | 660ft Length

OFDG-600X660 OROFLEX® DRAG by Kuriyama | OFDG Series | Manure Drag Layflat Hose | Polyurethane | 6" Size | 6.003" Hose ID | Orange | 660ft Length

Sale price$10,869.37

Package Quantity: 660 Foot

Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

Applications: Drag and transport lines for slurry/manure injection and spreading.
Irrigation feeding line.
Traveler irrigators.
Construction: Orange polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range: -58°F (-50°C) to +150°F (+65°C);
Intermittent service to +175°F (+79°C)
Other Features:
  • Premium Polyurethane (TPU) Material - Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products.
  • Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting.
  • Longer Lengths - Manufactured in special 660 foot lengths to reduce possible leaking points.
  • Smooth TPU Tube - Provides low friction loss.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Made in Europe.
Part Number
660ft		 Size Hose ID Wall
Thickness		 Working
Pressure
(PSI)		 Burst
Pressure		 Tensile
Strength
(in) (mm) (in) (mm) (in) at 68°F at 68°F (lbs)
OFDG-500X660 5" 127.0mm 5.020" 127.5mm 0.150" 200 PSI 505 PSI 39,700 lbs
OFDG-550X660 5-1/2" 139.7mm 5.571" 141.5mm 0.150" 175 PSI 435 PSI 44,100
OFDG-600X660 6" 152.4mm 6.003" 152.5mm 0.150" 175 PSI 435 PSI 55,100

Additional Product Data:

Brand:
  • OROFLEX DRAG
Series:
  • OFDG Series
Color(s):
  • Orange

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
