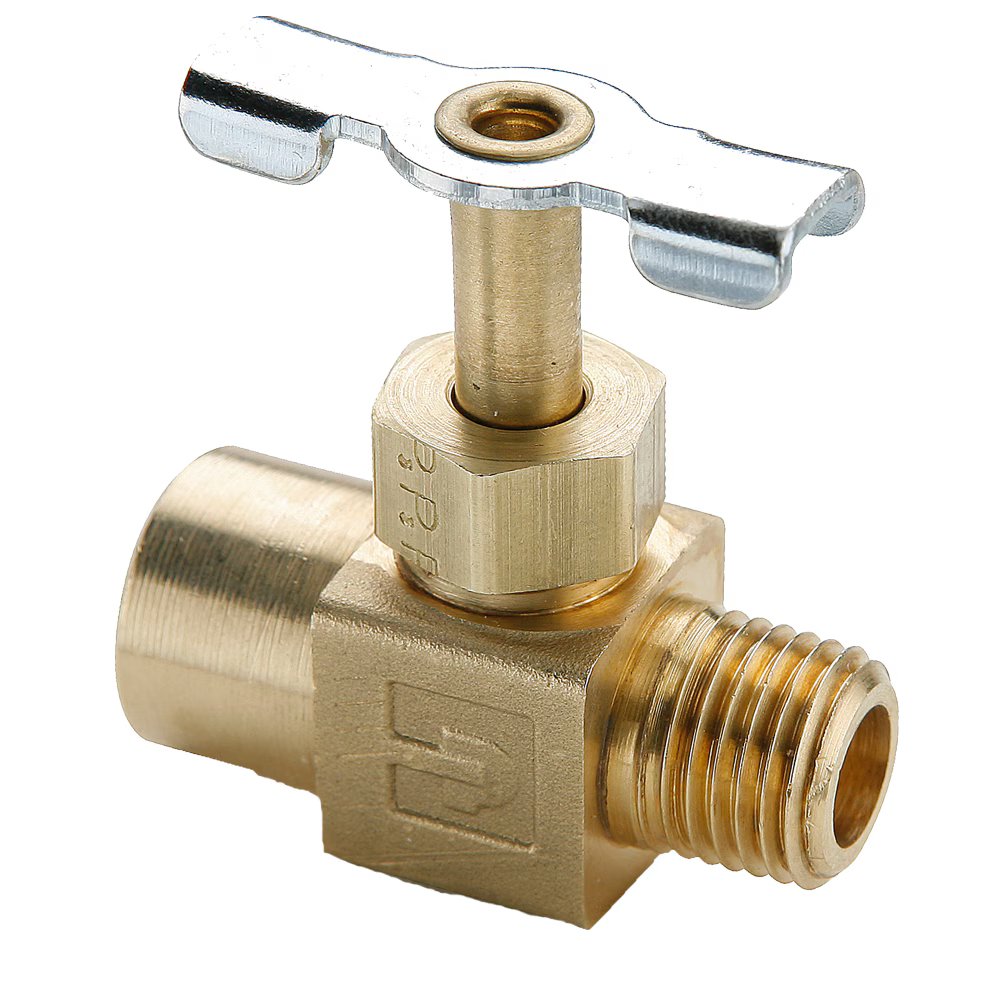

NV108P-2 by Parker | Needle Valve | 1/8" Female Pipe Thread x 1/8" Male Pipe Thread | 1.50" Length | Straight | Brass | Pack of 10

NV108P-2 by Parker | Needle Valve | 1/8" Female Pipe Thread x 1/8" Male Pipe Thread | 1.50" Length | Straight | Brass | Pack of 10

Sale price$139.38

Package Quantity: 10 Units

Buy more, save moreDiscounts applied in cart/checkout.
Parker’s all brass needle valves have metal-to-metal seats with fine thread screwdown. The specially formulated low temperature seal remains elastic to temperatures as low as -40°F (-40° C).
Product Features:
  • Extruded Brass Body & Stem
  • Low Temperature Seal
  • Metal-to-Metal Seal
  • Pin Handle
  • Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:
  • Compressed air, water, industrial fluids
  • Other fluids: please contact division.
Specification:
Temperature Range:
  • -40° to +175° F (-40° to +79.4° C)
  • Humidifier Valve Kit & Self Piercing Humidifier Kit: -30° to +250° F (-34.4° to +121.1° C)
  • NV311P/NV312P: 0° to +150° F (-17.7° to +65.5° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Pipe Thread H L M
NV108P-2* 1/8" 1.50" 1.36" 1.24"
NV108P-4 1/4" 1.38" 1.56" 1.61"

Additional Product Data:

Series:
  • NV108P Series
Shape:

Straight

Ends Configuration:
  • 1/8in Female NPSM
  • 1/8in Male NPSM

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Explore Parker Fluid System Connectors Division
