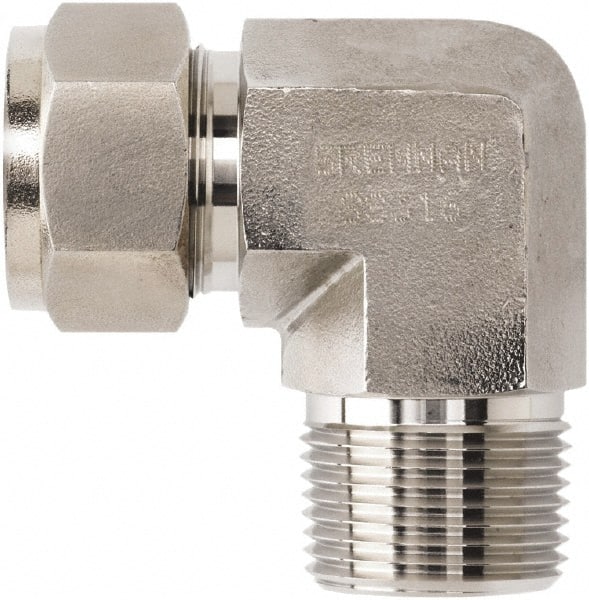

NS2501-06-02-SS by Brennan Inc. | -06 Single Ferrule Instrumentation Fitting x -02 Instrumentation Fitting | 90° Elbow | Stainless Steel

NS2501-06-02-SS by Brennan Inc. | -06 Single Ferrule Instrumentation Fitting x -02 Instrumentation Fitting | 90° Elbow | Stainless Steel

Sale price$55.72

Brennan Inc.
Single Ferrule Tube Fittings: NS2501 - Single Ferrule Instrumentation Fitting x Instrumentation Fitting 90° Elbow
Buy More, Save More!
Quantity Price Each
10–39 $52.38
40–79 $47.36
80+ $41.79
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/8in Tube Compression
  • 1/8in Male NPT
Material(s):
  • Stainless Steel
Part Number Material T Tube OD P NPT Male A
mm		 B
mm		 C
mm		 D
mm		 E Min.
mm		 F A/F
mm		 G A/F
mm		 HX
mm		 HY
mm
NS2501-04-02-B Brass 1/4" 1/8" 26.9mm 9.6mm 17.8mm 5.3mm 4.8mm 14mm 14mm 19.6mm 18.8mm
NS2501-04-04-B Brass 1/4" 1/4" 26.9mm 14.3mm 17.8mm 15.3mm 4.8mm 14mm 14mm 19.6mm 23.4mm
NS2501-06-04-B Brass 3/8" 1/4" 30.5mm 14.3mm 19.3mm 16.8mm 7.1mm 17mm 17mm 23.1mm 25.4mm
NS2501-06-06-B Brass 3/8" 3/8" 31.2mm 14.3mm 19.3mm 16.8mm 7.1mm 17mm 17mm 23.9mm 26.2mm
NS2501-08-08-B Brass 1/2" 1/2" 36.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22mm 22mm 25.9mm 33.0mm
NS2501-04-02-SS Stainless Steel 1/4" 1/8" 26.9mm 9.6mm 17.8mm 5.3mm 4.8mm 14mm 14mm 19.6mm 18.8mm
NS2501-04-04-SS Stainless Steel 1/4" 1/4" 26.9mm 14.3mm 17.8mm 15.3mm 4.8mm 14mm 14mm 19.6mm 23.4mm
NS2501-04-06-SS Stainless Steel 1/4" 3/8" 29.7mm 14.3mm 17.8mm 15.3mm 4.8mm 17mm 14mm 22.4mm 26.2mm
NS2501-04-08-SS Stainless Steel 1/4" 1/2" 31.8mm 19.1mm 17.8mm 15.3mm 4.8mm 22mm 14mm 24.4mm 33.0mm
NS2501-05-04-SS Stainless Steel 5/16" 1/4" 28.7mm 9.6mm 18.5mm 16.3mm 6.3mm 14mm 16mm 21.3mm 24.4mm
NS2501-06-02-SS Stainless Steel 3/8" 1/8" 30.5mm 9.6mm 19.3mm 16.8mm 4.8mm 14mm 17mm 23.1mm 20.9mm
NS2501-06-04-SS Stainless Steel 3/8" 1/4" 30.5mm 14.3mm 19.3mm 16.8mm 7.1mm 17mm 17mm 23.1mm 25.4mm
NS2501-06-06-SS Stainless Steel 3/8" 3/8" 31.2mm 14.3mm 19.3mm 16.8mm 7.1mm 17mm 17mm 23.9mm 26.2mm
NS2501-06-08-SS Stainless Steel 3/8" 1/2" 33.3mm 19.1mm 19.3mm 16.8mm 7.1mm 22mm 17mm 25.9mm 33.0mm
NS2501-08-04-SS Stainless Steel 1/2" 1/4" 36.0mm 14.3mm 21.8mm 22.9mm 4.8mm 22mm 22mm 25.9mm 28.2mm
NS2501-08-06-SS Stainless Steel 1/2" 3/8" 36.0mm 14.3mm 21.8mm 22.9mm 9.6mm 22mm 22mm 25.9mm 28.2mm
NS2501-08-08-SS Stainless Steel 1/2" 1/2" 36.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22mm 22mm 25.9mm 33.0mm
NS2501-10-08-SS Stainless Steel 5/8" 1/2" 38.1mm 19.1mm 21.8mm 24.4mm 11.9mm 24mm 25mm 27.9mm 35.0mm
NS2501-12-08-SS Stainless Steel 3/4" 1/2" 39.9mm 19.1mm 21.8mm 24.4mm 11.9mm 27mm 28.5mm 29.7mm 36.8mm
NS2501-12-12-SS Stainless Steel 3/4" 3/4" 39.9mm 19.1mm 21.8mm 24.4mm 15.8mm 27mm 28.5mm 29.7mm 36.8mm
NS2501-16-16-SS Stainless Steel 1" 1" 49.9mm 23.8mm 26.4mm 31.2mm 22.3mm 35mm 38mm 36.8mm 46.5mm
NS2501-24-24-SS Stainless Steel 1-1/2" 1-1/2" 78.0mm 26.2mm 45.2mm 50.0mm 34.0mm 55mm 57mm 50.8mm 60.4mm
