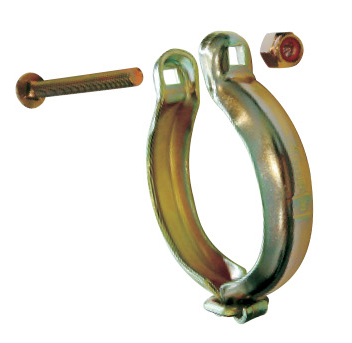

NH100086-250YF Flexmaster by Danfoss | Tube Coupling | 2.50" Tube OD

NH100086-250YF Flexmaster by Danfoss | Tube Coupling | 2.50" Tube OD

Sale price$34.81

Danfoss Flexmaster Replacement Parts

In stock
Buy More, Save More!
Quantity Price Each
10–39 $32.72
40–79 $29.59
80+ $26.11
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Steel
Gasket Material Code:
  • C - Buna-N (standard)
  • D - EPDM
  • N - Buna-N (High Temperature)
  • V - Fluorocarbon
  • S - Silicone

Flexmaster TUBE Replacement Parts
Tube Size
(in)		 Tube OD
(in)		 Coupling
(Includes
Nut & Bolt)		 Straight
Sleeves		 Gasket
Retainer		 Gaskets Self Restrained Gaskets
Buna-N EPDM High Temp
Buna-N		 Silicone Fluorocarbon Buna-N EPDM
1.00" 1.00" NH100085-075YF NK1237-075B0250 NK1000023-075 NK1000064C100 - - NK1000064S100 NK1000064V100 NK1000062C100 -
1.25" 1.25" NH100085-100YF NK1237-100B0288 NK1000023-100 NK1000064C125 - - NK1000064S125 NK1000064V125 NK1000062C125 -
1.38" 1.38" NH100086-150YF - NK1000056-138 NK1000064C138 - - - - - -
1.50" 1.50" - NK1238-150B0300 NK1000056-150 NK1000064C150 NK1000064D150 NK1000064N150 NK1000064S150 NK1000064V150 NK1000062C150 -
1.75" 1.75" NH100085-150YF NK1238-175B0350 NK1000056-175 NK1000064C175 - - - - NK1000062C175 -
2.00" 2.00" NH100086-200YF NK1238-200B0350 NK1000056-200 NK1000064C200 NK1000064D200 NK1000064N200 NK1000064S200 NK1000064V200 NK1000062C200 NK1000062D200
2.25" 2.25" NH100085-200YF NK1238-225B0400 NK1000056-225 NK1000064C225 - - - - - -
2.50" 2.50" NH100086-250YF NK1238-250B0400 NK1000056-250 NK1000064C250 NK1000064D250 - NK1000064S250 NK1000064V250 NK1000062C250 -
2.88" 2.88" NH100085-250YF NK1237-250B0650 NK1000023-250 NK1000063C250 NK1000063D250 NK1000063N250 NK1000063S250 NK1000063V250 NK1000061C250 NK1000061D250
3.00" 3.00" NH100086-300YF NK1238-300B0500 NK1000056-300 NK1000064C300 NK1000064D300 NK1000064N300 NK1000064S300 NK1000064V300 NK1000062C300 -
3.25" 3.25" - - - NK1000064C325 - - - - - -
3.50" 3.50" NH100085-300YF NK1237-300B0650 NK1000023-300 NK1000063C300 NK1000063D300 NK1000063N300 NK1000063S300 NK1000063V300 NK1000061C300 NK1000061D300
4.00" 4.00" NH100085-350YF NK1237-350B0650 NK1000023-350 NK1000063C350

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
