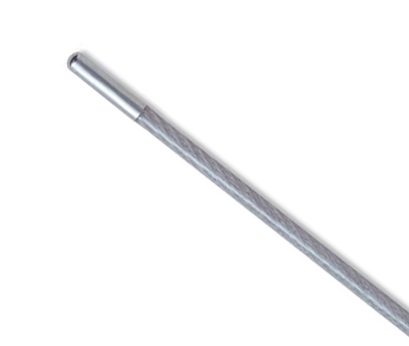

NC62-C by Flexco | #54003 | Alligator Ready Set Staple Hinge Pin (for RS62 Series) | 100 Ft. Coil | Nylon Covered Steel Cable

Designed for light and medium-duty synthetic carcass belting, the Alligator® Staple fastener utilizes high tensile, stainless steel staple attachment, in conjunction with an extended plate design. This design separates the point of fastener penetration from the line of belt flexing to eliminate splice fatigue at the point of belt attachment.

Staple fasteners are furnished in strips with a bridge between each fastener plate. This strip design minimizes the chance of individual parts dislodging into the conveyed product. The one-piece design provides a stronger splice, greater resistance to impact damage, and a smoother, unrippled joint that simplifies hinge pin insertion.

Staples are hammer driven through the fastener and belt, working between the carcass fibers without severing them. The staples are then clinched cross-wise to the belt, so that belt tension does not pull against the staples to unclinch them.

Applications:
Package and Parts Conveying, Food and Sanitary Contact, Agricultural Harvesting and Handling, Recycling and Scrap Handling, Wood Products
Features:
Available in 10ft or 100ft Coils

Part Number	Material	Use on Fastener Size	Package Quantity
NC62-X	Nylon Covered Steel	RS62	10ft. Coil
NC62-C	Nylon Covered Steel	RS62	100ft. Coil
NCS62-X	Nylon Covered Stainless Steel	RS62	10ft. Coil
NCS62-C	Nylon Covered Stainless Steel	RS62	100ft. Coil
NC1-X	Nylon Covered Steel	RS125	10ft. Coil
NC1-C	Nylon Covered Steel	RS125	100ft. Coil
NCS1-X	Nylon Covered Stainless Steel	RS125	10ft. Coil
NCS1-C	Nylon Covered Stainless Steel	RS125	100ft. Coil
NC187-X	Nylon Covered Steel	RS187	10ft. Coil
NC187-C	Nylon Covered Steel	RS187	100ft. Coil
