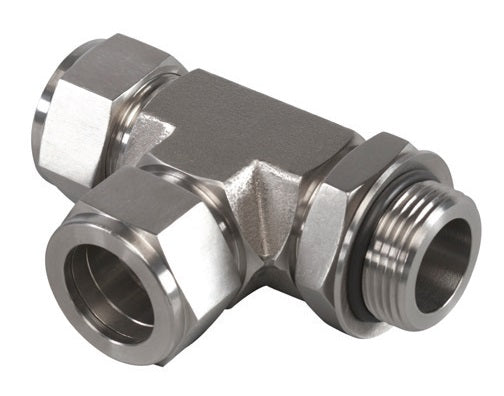

N6804-16-16-16-NWO-SS by Brennan Inc. | -16 Instrumentation Fitting x -16 Male Adjustable O-Ring Boss x -16 Instrumentation Fitting | Tee | Stainless Steel

N6804-16-16-16-NWO-SS by Brennan Inc. | -16 Instrumentation Fitting x -16 Male Adjustable O-Ring Boss x -16 Instrumentation Fitting | Tee | Stainless Steel

Sale price$409.29

Brennan Inc.
Double Ferrule Tube Fittings: N6804 - Instrumentation Fitting x Male Adjustable O-Ring Boss x Instrumentation Fitting Tee
Buy More, Save More!
Quantity Price Each
5–14 $384.73
15–29 $347.90
30+ $306.97
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 1in Tube Compression
  • 1in Male O-Ring Boss
  • 1in Tube Compression
  • Some Ends Match
Material(s):
  • Stainless Steel
Part Number Material T Tube OD S SAE/MS Male A AX B C D E Min. F A/F FX A/F G A/F H HX HY U O-Ring Part No.
N6804-04-04-04-NWO-SS Stainless Steel 1/4" 7/16-20" 57.0mm 28.5mm 9.9mm 17.9mm 15.3mm 4.8mm 14mm 14mm 14mm 49.5mm 21.0mm 28.5mm 16.5mm 4001-04
N6804-16-16-16-NWO-SS Stainless Steel 1" 15/16-12" 104.1mm 50.5mm 16.8mm 26.4mm 31.2mm 22.3mm 35mm 35mm 38mm 92.0mm 38.4mm 53.6mm 44.0mm 4001-16

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
