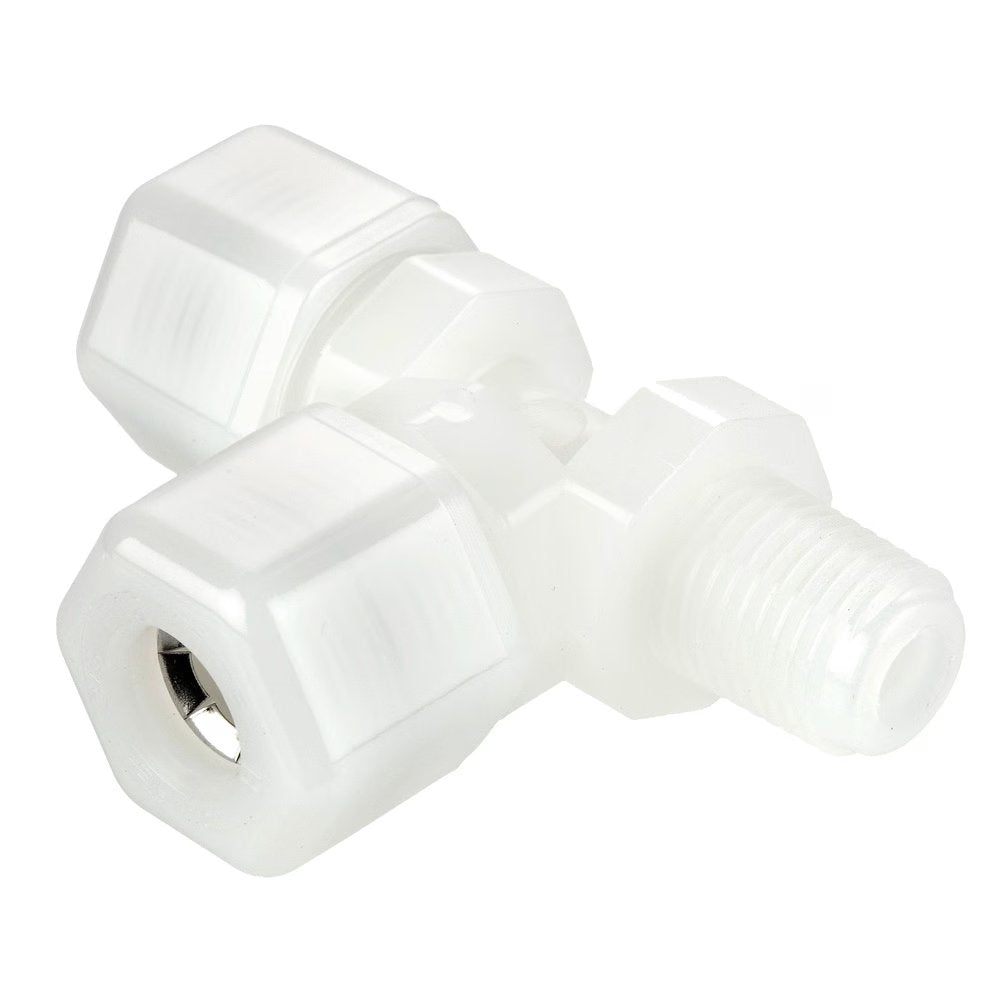

N4MR2 by Parker | Threaded Fitting | 1/4" Tube OD x 1/8" Female NPTF Thread | 11/16" Hex | 1.98" Length | Tee | Natural | Nylon

N4MR2 by Parker | Threaded Fitting | 1/4" Tube OD x 1/8" Female NPTF Thread | 11/16" Hex | 1.98" Length | Tee | Natural | Nylon

Minimum Order Quantity: 5 Units

Sale price$8.72
Buy more, save moreDiscounts applied in cart/checkout.
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. NPTF Thread Size Hex (C) M N Flow Diameter (D)
P4MR2 N4MR2 1/4" 1/8" 11/16" 1.09" .89" .170"
P6MR4 N6MR4 3/8" 1/4" 13/16" 1.30" 1.17" .250"
P8MR6 - 1/2" 3/8" 1" 1.46" 1.28" .375"

Additional Product Data:

Brand:
  • Fast & Tite®
Series:
  • MR Series
Shape:

Tee

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
