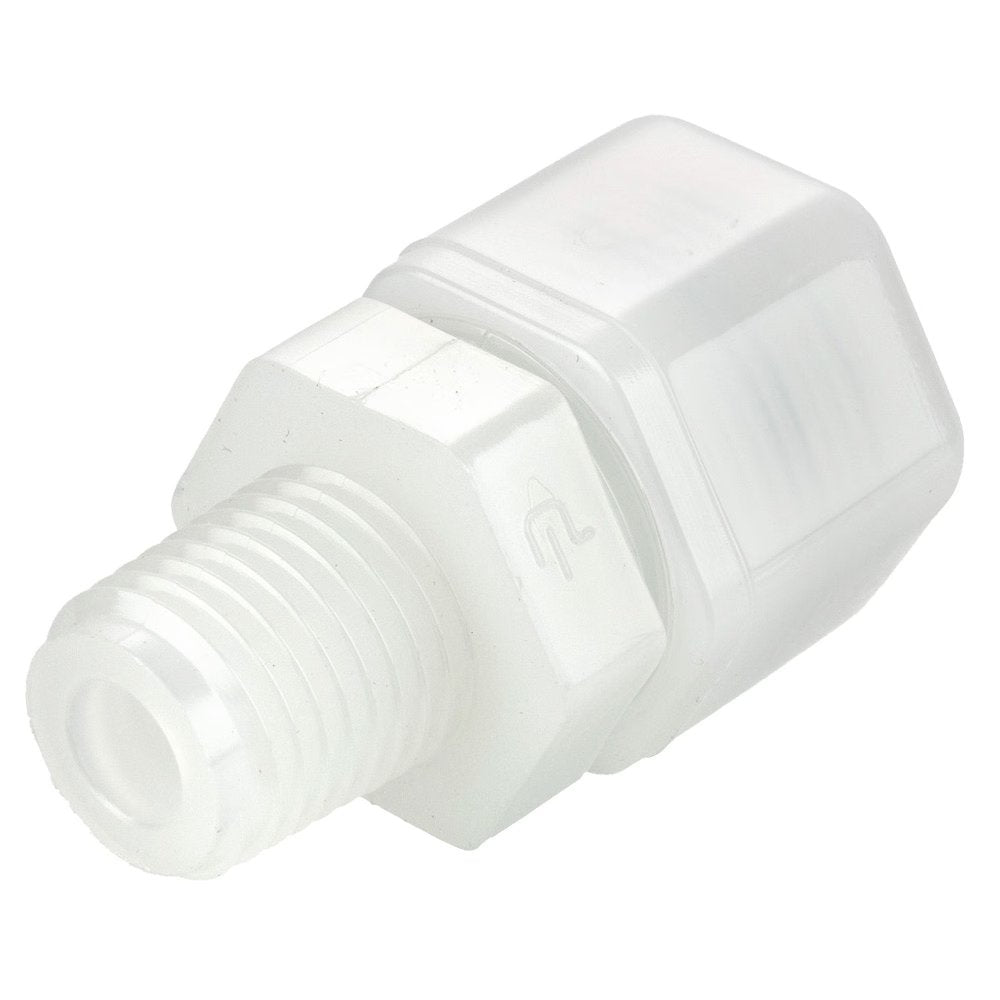

N4MC6 by Parker | Threaded Fitting | 1/4" Tube Connector x 3/8" Male NPTF Thread | 11/16" Hex | 1.48" Length | Straight | Natural | Nylon
by Parker Hannifin
Fast & Tite® Fittings:MC - Male Connector
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|||||
|---|---|---|---|---|---|---|
| Markets: |
|
|||||
| Applications: |
|
|||||
 |
||||||
| Temperature Range: | 0° to +200° F (-17.8° to +93.3° C) | |||||
| Compatible Tubing: |
|
|||||
 |
||||||
 |
|||||||
|---|---|---|---|---|---|---|---|
| Black Polypropylene Part Number | White Polypropylene Part Number | Natural Nylon Part Number | Nom. Tube O.D. | NPTF Thread Size | Hex (C) | Overall Length (L) | Flow Diameter (D) |
| P4MC2 | - | N4MC2 | 1/4" | 1/8" | 11/16" | 1.28" | .170" |
| P4MC4 | W4MC4 | N4MC4 | 1/4" | 1/4" | 11/16" | 1.51" | .170" |
| P4MC6 | W4MC6 | N4MC6 | 1/4" | 3/8" | 11/16" | 1.48" | .170" |
| P5MC2 | - | N5MC2 | 5/16" | 1/8" | 11/16" | 1.38" | .170" |
| P5MC4 | - | N5MC4 | 5/16" | 1/4" | 11/16" | 1.50" | .250" |
| P6MC2 | - | N6MC2 | 3/8" | 1/8" | 13/16" | 1.50" | .170" |
| P6MC4 | W6MC4 | N6MC4 | 3/8" | 1/4" | 13/16" | 1.67" | .250" |
| P6MC6 | W6MC6 | N6MC6 | 3/8" | 3/8" | 13/16" | 1.67" | .250" |
| P6MC8 | W6MC8 | N6MC8 | 3/8" | 1/2" | 1" | 1.78" | .250" |
| P6MC12 | - | N6MC12 | 3/8" | 3/4" | 1" | 1.84" | .250" |
| P8MC2 | - | - | 1/2" | 1/8" | 1" | 1.61" | .170" |
| P8MC4 | W8MC4 | N8MC4 | 1/2" | 1/4" | 1" | 1.74" | .250" |
| P8MC6 | W8MC6 | N8MC6 | 1/2" | 3/8" | 1" | 1.74" | .375" |
| P8MC8 | W8MC8 | N8MC8 | 1/2" | 1/2" | 1" | 1.87" | .375" |
| P8MC12 | W8MC12 | N8MC12 | 1/2" | 3/4" | 1" | 1.89" | .375" |
| P10MC2 | - | - | 5/8" | 1/8" | 1-1/8" | 1.75" | .170" |
| P10MC4 | - | N10MC4 | 5/8" | 1/4" | 1-1/8" | 1.90" | .250" |
| P10MC6 | - | N10MC6 | 5/8" | 3/8" | 1-1/8" | 1.90" | .375" |
| P10MC8 | W10MC8 | N10MC8 | 5/8" | 1/2" | 1-1/8" | 2.01" | .500" |
| P10MC12 | W10MC12 | N10MC12 | 5/8" | 3/4" | 1-1/8" | 2.04" | .500" |
