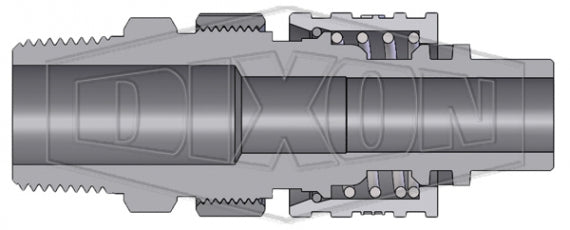

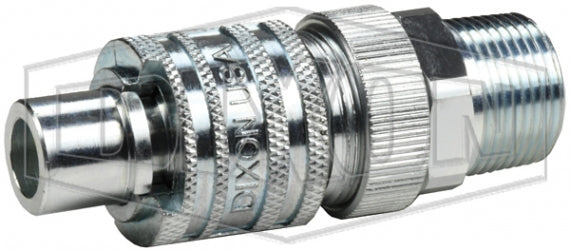

N4M6-ZLS by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | 3/4" Male NPTF x 1/2" Body Size | Plug with Steel Locking Sleeve | Steel
N4M6-ZLS by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | 3/4" Male NPTF x 1/2" Body Size | Plug with Steel Locking Sleeve | Steel

N4M6-ZLS by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | 3/4" Male NPTF x 1/2" Body Size | Plug with Steel Locking Sleeve | Steel

Sale price$30.50

Dixon Valve & Coupling
Pneumatic Coupling: Dix-Lock N-Series Plug with Steel Locking Sleeve (Male Threads)
Buy More, Save More!
Quantity Price Each
10–39 $28.67
40–79 $25.93
80+ $22.88
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Dix-Lock
Series:
  • N Series
Shape:

Straight
Compatibility & Interchange:
  • Bowes Interchange Bayonet Style
  • Interchangeable with Bowes 51000-Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock
  • Conforms to MIL-C-3486 and A-A-50431A standards
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel retaining ring and spring maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Coupling sleeve constructed of cast zinc steel.
  • Steel lock ring.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
Dix-Lock N-Series | Plug with Steel Locking Sleeve (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Pressure Ratings for:
N4M6-ZLS Plug/Male 1/2" 3/4" -14 Male NPTF Steel 3.65"
(92.70mm)		 1.31"
(33.30mm)		 1-3/16" Steel Coupler & Steel Plug:
Maximum Working: 500 PSI (35 bar)
Burst: 11,000 PSI (755 bar)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
