N40-03X48X67 by Kuriyama | Commercial Grade Neoprene Sheet Rubber | 40 Duro Hardness | Shore Durometer A | Black | 3/32" x 48" | 67ft Roll

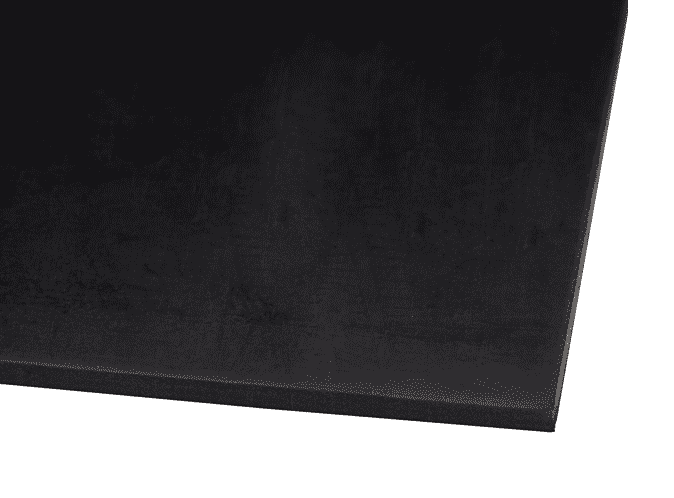

Kuriyama Industrial Sheet Rubber - Commercial Grade Black Neoprene Sheet
Package Quantity: 67 FT
Product Data:
SPECIFICATIONS
| Styles: | Style N40: 40 Duro hardness (Shore Durometer A) Style N50: 50 Duro hardness (Shore Durometer A) Style N60: 60 Duro hardness (Shore Durometer A) Style N70: 70 Duro hardness (Shore Durometer A) Style N80: 80 Duro hardness (Shore Durometer A) |
Polymer: | Chloroprene |
|---|---|---|---|
| Common Name: | Neoprene | ISO/ASTM Designation: | CR |
| Features & Properties: | |||
|
|||
| Part Number | Gauge x Width in. |
ASTM Specification (SI units) |
Temp. Range |
Durometer | Tensile Strength (PSI) |
Elongation (%) |
Finish | Avg. Length (Linear Ft. /Roll) |
Weight (Lbs/Roll) |
|---|---|---|---|---|---|---|---|---|---|
| N40-02X36X67 | 1/16" x 36" | D 2000 M2BC 407 | -20 deg. F to +180 deg. F | 35 - 45 | 900 PSI | 400% | Plate | 67ft | 96 lbs |
| N40-04X36X67 | 1/8" x 36" | D 2000 M2BC 407 | -20 deg. F to +180 deg. F | 35 - 45 | 900 PSI | 400% | Plate | 67ft | 195 lbs |
| N40-02X36X36 | 3/16" x 36" | D 2000 M2BC 407 | -20 deg. F to +180 deg. F | 35 - 45 | 900 PSI | 400% | Plate | 36ft | 158 lbs |
| N40-08X36X36 | 1/4" x 36" | D 2000 M2BC 407 | -20 deg. F to +180 deg. F | 35 - 45 | 900 PSI | 400% | Plate | 36ft | 210 lbs |
| N40-02X48X67 | 1/16" x 48" | D 2000 M2BC 407 | -20 deg. F to +180 deg. F | 35 - 45 | 900 PSI | 400% | Plate | 67ft | 128 lbs |
| N40-03X48X67 | 3/32" x 48" | D 2000 M2BC 407 | -20 deg. F to +180 deg. F | 35 - 45 | 900 PSI | 400% | Plate | 67ft | 200 lbs |
| N40-04X48X67 | 1/8" x 48" | D 2000 M2BC 407 | -20 deg. F to +180 deg. F | 35 - 45 | 900 PSI | 400% | Plate | 67ft | 256 lbs |
| N40-06X48X36 | 3/16" x 36" | D 2000 M2BC 407 | -20 deg. F to +180 deg. F | 35 - 45 | 900 PSI | 400% | Plate | 36ft | 215 lbs |
| N40-08X48X36 | 1/4" x 48" | D 2000 M2BC 407 | -20 deg. F to +180 deg. F | 35 - 45 | 900 PSI | 400% | Plate | 36ft | 280 lbs |
| N50-02X48X67 | 1/16" x 48" | D 2000 M2BC 507 | -20 deg. F to +180 deg. F | 45 - 55 | 1000 PSI | 400% | Plate | 67ft | 132 lbs |
| N50-04X48X36 | 1/8" x 48" | D 2000 M2BC 507 | -20 deg. F to +180 deg. F | 45 - 55 | 1000 PSI | 400% | Plate | 36ft | 142 lbs |
| N50-06X48X36 | 3/16" x 48" | D 2000 M2BC 507 | -20 deg. F to +180 deg. F | 45 - 55 | 1000 PSI | 400% | Plate | 36ft | 213 lbs |
| N50-08X48X18 | 1/4" x 48" | D 2000 M2BC 507 | -20 deg. F to +180 deg. F | 45 - 55 | 1000 PSI | 400% | Plate | 18ft | 142 lbs |
| N60-01X36X67 | 1/32" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 67ft | 52 lbs |
| N60-02X36X67 | 1/16" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 67ft | 99 lbs |
| N60-02X36X100 | 1/16" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 100ft | 147 lbs |
| N60-03X36X67 | 3/32" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 67ft | 149 lbs |
| N60-04X36X50 | 1/8" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 50ft | 148 lbs |
| N60-04X36X67 | 1/8" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 67ft | 198 lbs |
| N60-04X36X100 | 1/8" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 100ft | 295 lbs |
| N60-06X36X40 | 3/16" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 36ft | 179 lbs |
| N60-06X36X50 | 3/16" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 50ft | 223 lbs |
| N60-08X36X36 | 1/4" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 36ft | 214 lbs |
| N60-08X36X40 | 1/4" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 40ft | 238 lbs |
| N60-08X36X50 | 1/4" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 50ft | 297 lbs |
| N60-16X36X18 | 1/2" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 18ft | 214 lbs |
| N60-16X36X25 | 1/2" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 25ft | 297 lbs |
| N60-24X36X18 | 3/4" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 18ft | 319 lbs |
| N60-24X36X25 | 3/4" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 25ft | 443 lbs |
| N60-32X36X18 | 1" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 18ft | 426 lbs |
| N60-32X36X25 | 1" x 36" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 25ft | 592 lbs |
| N60-02X48X67 | 1/16" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 67ft | 132 lbs |
| N60-02X48X100 | 1/16" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 100ft | 197 lbs |
| N60-03X48X67 | 3/32" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 67ft | 200 lbs |
| N60-04X48X36 | 1/8" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 36ft | 142 lbs |
| N60-04X48X50 | 1/8" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 50ft | 197 lbs |
| N60-06X48X36 | 3/16" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 36ft | 213 lbs |
| N60-06X48X40 | 3/16" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 40ft | 236 lbs |
| N60-06X48X50 | 3/16" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 50ft | 296 lbs |
| N60-08X48X18 | 1/4" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 18ft | 142 lbs |
| N60-08X48X50 | 1/4" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 50ft | 394 lbs |
| N60-12X48X30 | 3/8" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 30ft | 355 lbs |
| N60-16X48X18 | 1/2" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 18ft | 284 lbs |
| N60-16X48X25 | 1/2" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 25ft | 394 lbs |
| N60-16X48X30 | 1/2" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 30ft | 471 lbs |
| N60-16X48X40 | 1/2" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 40ft | 628 lbs |
| N60-24X48X18 | 3/4" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 18ft | 425 lbs |
| N60-24X48X25 | 3/4" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 25ft | 590 lbs |
| N60-32X48X18 | 1" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 18ft | 567 lbs |
| N60-32X48X25 | 1" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1000 PSI | 350% | Plate | 25t | 788 lbs |
| N70-02X48X67 | 1/16" x 48" | D 2000 M2BC 707 | -20 deg. F to +180 deg. F | 65 - 75 | 1000 PSI | 350% | Plate | 67ft | 132 lbs |
| N70-04X48X36 | 1/8" x 48" | D 2000 M2BC 707 | -20 deg. F to +180 deg. F | 65 - 75 | 1000 PSI | 350% | Plate | 36ft | 142 lbs |
| N70-06X48X36 | 3/16" x 48" | D 2000 M2BC 707 | -20 deg. F to +180 deg. F | 65 - 75 | 1000 PSI | 350% | Plate | 36ft | 213 lbs |
| N70-08X48X18 | 1/4" x 48" | D 2000 M2BC 707 | -20 deg. F to +180 deg. F | 65 - 75 | 1000 PSI | 350% | Plate | 18ft | 142 lbs |
| N80-02x36x50 | 1/16" x 36" | D 2000 M2BC 807 | -20 deg. F to +180 deg. F | 75 - 85 | 900 PSI | 200% | Plate | 50ft | 74 lbs |
| N80-04x36x50 | 1/8" x 36" | D 2000 M2BC 807 | -20 deg. F to +180 deg. F | 75 - 85 | 900 PSI | 200% | Plate | 50ft | 148 lbs |
| N80-08x36x50 | 1/4" x 36" | D 2000 M2BC 807 | -20 deg. F to +180 deg. F | 75 - 85 | 900 PSI | 200% | Plate | 50ft | 297 lbs |
NOTE: N80 is also available in 48" width . . . contact Customer Service.
