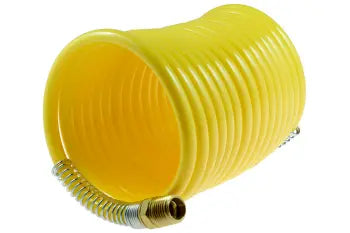

N34-12A by Coilhose | Coiled Air Hose | 3/4" Hose ID | 3/4" Male NPT Thread | 1 Swivel / 1 Rigid Fitting | Yellow | Nylon | 12ft

N34-12A by Coilhose | Coiled Air Hose | 3/4" Hose ID | 3/4" Male NPT Thread | 1 Swivel / 1 Rigid Fitting | Yellow | Nylon | 12ft

Sale price$106.95
Coilhose Pneumatics - Coiled Hose - Nylon Air Hose - 3/4" ID
Buy More, Save More!
Quantity Price Each
5–19 $100.53
20–59 $90.91
60+ $80.21
Discounts applied in cart/checkout.

Product Data:

Color(s):
  • Yellow
Ends Configuration:
  • 3/4in Male NPT
  • 3/4in Male NPT
  • Some Ends Match
Material(s):
  • Nylon
Overview:
  • This lightweight, permanently-coiled hose is manufactured from tough, abrasion-resistant Nylon 11 and designed to withstand temperatures between -60° F and +200° F. Each assembly is supplied with durable brass compression fittings, tube inserts and hose ferrules. Spring guards for additional strain relief are also provided on all assemblies, except 3/4".
Benefits:
  • Heavy duty brass fittings assure longer service life in rugged industrial environments.
  • High quality Nylon 11 formulation resists moisture absorption, making it the superior nylon tubing choice for most applications.

Specifications:
Model Tube I.D Tube O.D Wall Thickness W Pat 70° F Nominal Coil O.D. Retracted Length Recommended Working Length Nominal Weight 25' Standard Color
N18-25 1/8" .182/.189 .029+/-.003 315 PSI 1-1/2" 14-3/8" 22' 4 oz. Blue
N316-25 3/16" .247/.253 .031+/-.003 230 PSI 2-7/8" 9-1/2" 22' 8 oz. Yellow
N14-25 1/4" .305/.313 .033+/-.003 185 PSI 3-1/2" 10-1/2" 22' 10 oz. Yellow
N516-25 5/16" .369/.377 .037+/-.003 175 PSI 4-5/8" 10-1/2" 22' 12 oz. Yellow
N38-25 3/8" .465/.475 .045+/-.003 165 PSI 5-5/8" 10-1/4" 21' 16 oz. Yellow
N12-25 1/2" .620/.630 .062+/-.003 170 PSI 9" 9" 18' 30 oz. Yellow
N34-25 3/4" .878/.886 .066+/-.003 120 PSI 12-1/2" 9" 17' 34 oz. Yellow

Part No Inside
Diameter		 Overall
Length		 Fittings Color Retracted
Length		 Working
Length
N34-12 3/4" 12 ft 3/4" 2 Rigid MPT Yellow 4.4" 9.6ft
N34-12A 3/4" 12 ft 3/4" 1 Rigid / 1 Swivel MPT Yellow 4.4" 9.6ft
N34-12B 3/4" 12 ft 3/4" 2 Swivel MPT Yellow 4.4" 9.6ft
N34-17 3/4" 17 ft 3/4" 2 Rigid MPT Yellow 5.3" 13.6ft
N34-17A 3/4" 17 ft 3/4" 1 Rigid / 1 Swivel MPT Yellow 5.3" 13.6ft
N34-17B 3/4" 17 ft 3/4" 2 Swivel MPT Yellow 5.3" 13.6ft
N34-25 3/4" 25 ft 3/4" 2 Rigid MPT Yellow 7.9" 20ft
N34-25A 3/4" 25 ft 3/4" 1 Rigid / 1 Swivel MPT Yellow 7.9" 20ft
N34-25B 3/4" 25 ft 3/4" 2 Swivel MPT Yellow 7.9" 20ft
N34-50 3/4" 50 ft 3/4" 2 Rigid MPT Yellow 15" 40ft
N34-50A 3/4" 50 ft 3/4" 1 Rigid / 1 Swivel MPT Yellow 15" 40ft
N34-50B 3/4" 50 ft 3/4" 2 Swivel MPT Yellow 15" 40ft
N34-100 3/4" 100 ft None Yellow 30" 80ft
1/8" I.D. is available in blue only. All other hoses are available in yellow (standard) or red (contact customer service).

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
